Запчасти Case IH 527 (35.100.04) - HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

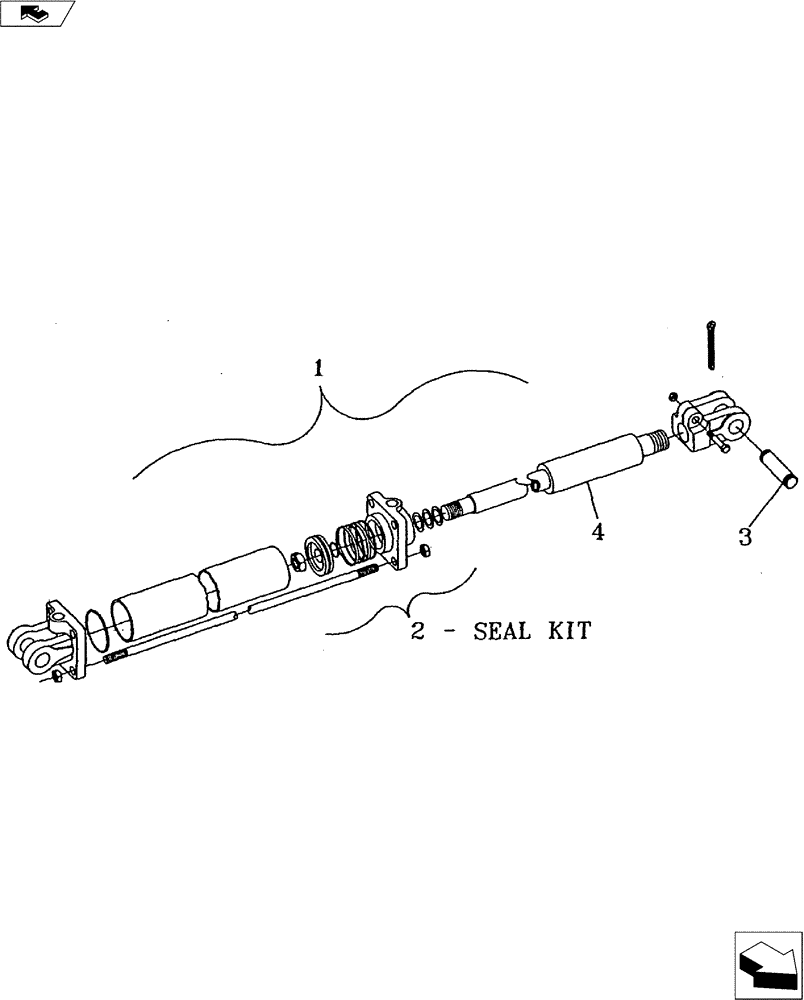

Схема запчастей Case IH 527 - (35.100.04) - HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS
4
3
1
2

Артикул

Название

Примечание

Количество

1

25330083

CYLINDER ASSY.

3" X 8" - SAE Ports (20-1/4" Closed) - 3,000, P.S.I.

1шт.

1

25330101

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

3" x 10"- SAE Ports (20-1/4" Closed) - 3,000, P.S.I.

1шт.

1

25330101R

REMAN-HYD CYLINDER

527 DMI ECOLO-TIGER®, 527 DMI ECOLO-TIGER® - DISC LEVELER, Both SAE Ports (20-1/4" Closed), 3,000, P.S.I.

1шт.

1

25330101C

CORE-HYD CYLINDER

Return Number

1шт.

2

25833007

SEAL KIT

1-1/4" Dia. Rod - 3"

1шт.

3

25890100

KIT

1" Dia. Clevis Pin Bag Of Parts

1шт.

4

9102959

Stroke - For Main Lift Cylinder Only

1шт.

Выбрано товаров: 7
