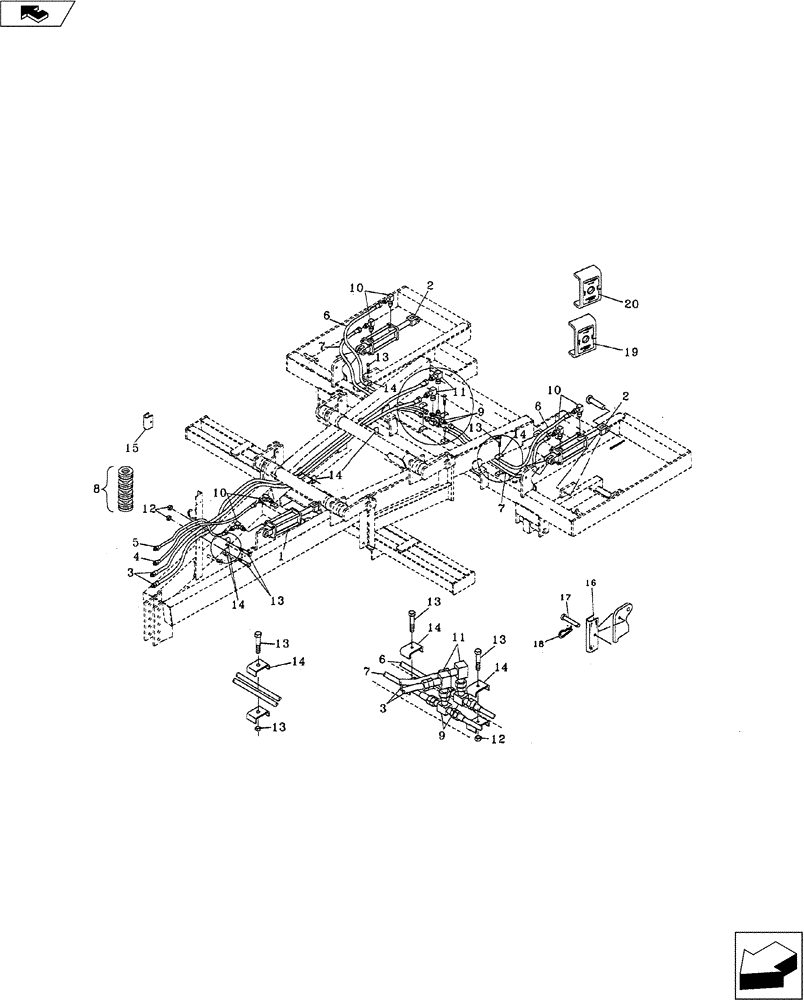

Запчасти Case IH 527 (35.100.01) - HYDRAULICS (WITH COULTER ATTACHMENT) (35) - HYDRAULIC SYSTEMS

1

25220081

3" x 8", 3000 Psi

1шт.

2

25330101

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

3" x 10" , 3000 Psi

2шт.

2

25330101R

REMAN-HYD CYLINDER

527 DMI ECOLO-TIGER®, 3000 Psi

2шт.

2

25330101C

CORE-HYD CYLINDER

Return Number

2шт.

3

25610901

HYDRAULIC HOSE

1/2" x 196" Long

2шт.

4

25610713

HYDRAULIC HOSE

3/8" x 118" Long

1шт.

5

25610712

HYDRAULIC HOSE

3/8" x 110" Long

1шт.

6

25600651

HYDRAULIC HOSE,0.38" ID x 52.00", SAE 100R17

Long

2шт.

7

25600635

HYDRAULIC HOSE,0.38" ID x 48.00", SAE 100R17

Long

2шт.

8

25800010

CYLINDER

Stroke Kit - 1-1/4"

4шт.

9

25707518

3 WAY CONNECTION

3/4" - I6 JICM Tee

2шт.

10

25707521

ELBOW

3/4" JICM x 3/4" SAEM 90°

6шт.

11

25707531

ELBOW

3/4" JICM x 3/4" JICF 90°

2шт.

12

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut Gd. 2

9шт.

13

NSS

NOT SOLD SEPARAT

3/8" x 1-1/2" NC Hex. Bolt

6шт.

14

06200125

HOSE CLAMP

9шт.

15

09650207

STAY

Disc Cylinder Stop - Black

1шт.

16

04632700

STAY

Cylinder Stop

2шт.

17

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" x 3-1/8" Clevis

3шт.

18

NSS

NOT SOLD SEPARAT

1/8" x 2" Hair Pin

3шт.

19

18534237

DECAL

Main Lift

1шт.

20

18534239

DECAL

Disc Unit

1шт.
