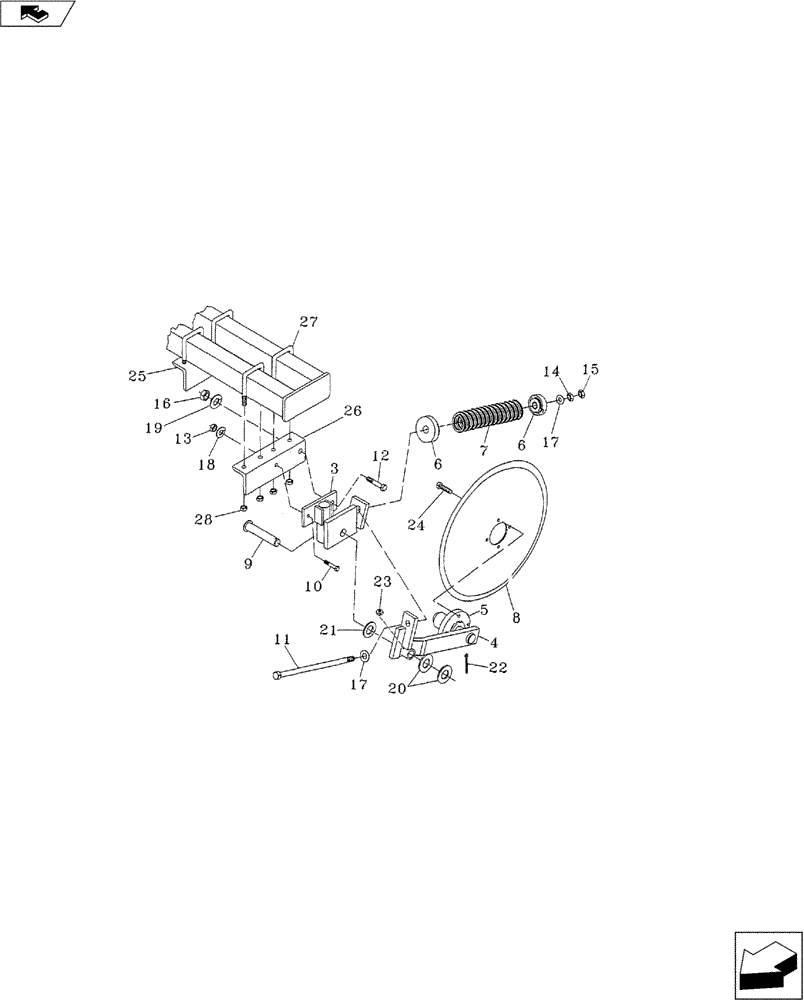

Запчасти Case IH 527 (75.200.03) - SPRING COULTER (75) - SOIL PREPARATION

1

09574000

COULTER

1шт.

2

09574100

DISC

Coulter With Hub

1шт.

3

09574230

PIVOT ASSY.

Coulter

1шт.

4

04642030

POWER ARM

Coulter with Hub

1шт.

5

28163310

HUB ASSY.

633 4-Bolt (See Figure 44.100.01)

1шт.

6

20090050

HOLDER

Spring Casting

2шт.

7

24156205

COIL SPRING

Compression

1шт.

8

33502442

PLOW DISC

24" Coulter Blade

1шт.

9

14820570

PIVOT PIN

1шт.

10

NSS

NOT SOLD SEPARAT

1/2" x 2-1/4" NC Hex. Bolt

1шт.

11

16010540

BOLT

5/8" x 13-1/2" NC Hex.

1шт.

12

16012085

BOLT

3/4" x 2" NC Hex. Gd. 5

1шт.

13

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

1шт.

14

NSS

NOT SOLD SEPARAT

5/8" NC Heavy Nut

1шт.

15

NSS

NOT SOLD SEPARAT

5/8" NC Jam Nut

1шт.

16

NSS

NOT SOLD SEPARAT

3/4" NC Jam Nut

1шт.

17

17411012

WASHER

5/8" Heavy

2шт.

18

NSS

NOT SOLD SEPARAT

1/2" Lock Washer

1шт.

19

NSS

NOT SOLD SEPARAT

3/4" Lock Washer

1шт.

20

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4" Machine - 14 Ga.

2шт.

21

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4" Machine - 10 Ga.

1шт.

22

NSS

NOT SOLD SEPARAT

1/4" x 1-1/2" Cotter Pin

1шт.

23

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Zerk

1шт.

24

S0000210

BOLT

1/2" x 1-1/4" NF Hex. Gd. 5

4шт.

25

09650530

ANCHOR

Staggered Coulter Angle Mount

4шт.

26

09650540

SUPPORT

Coulter Angle Mount

4шт.

27

16310250

U-BOLT

5/8" x 3"

8шт.

28

14001005

NUT

5/8" NC Hex. Gd. 5 Z.P.

16шт.
