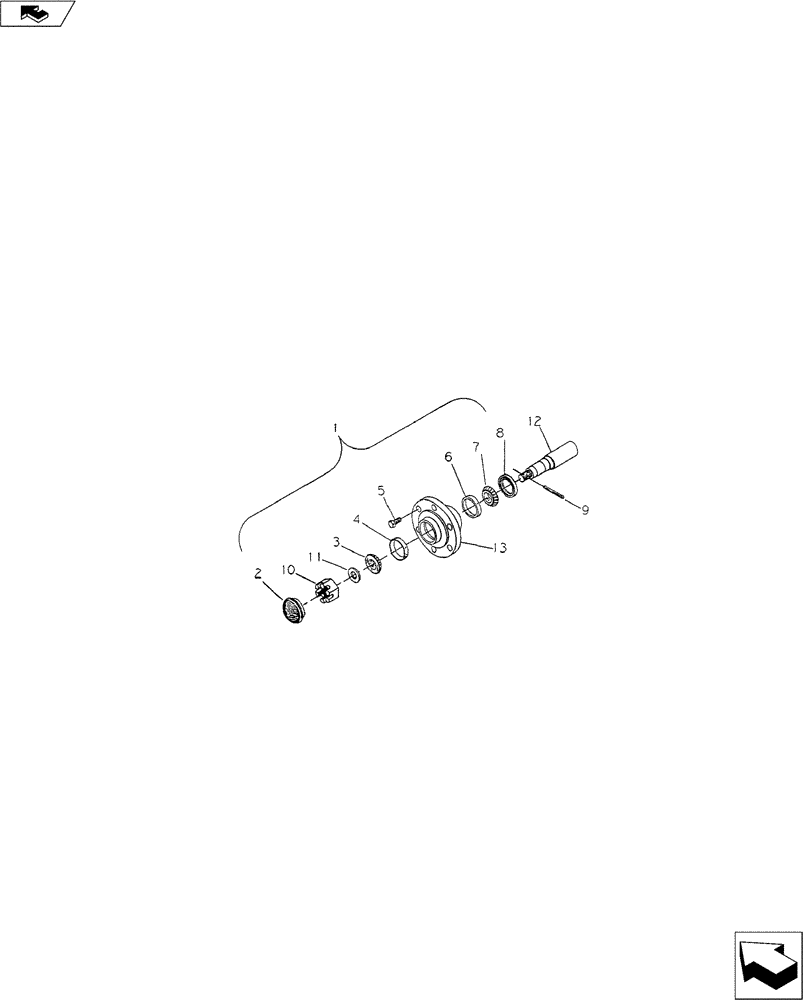

Запчасти Case IH 527 (44.100.01) - HUB & SPINDLE (44) - WHEELS

1

28163310

HUB ASSY.

633 4-Bolt ,Includes Ref. 2-8

1шт.

1

28178300

HUB ASSY.

783 6-Bolt , Includes Ref. 2-8

1шт.

2

28463300

HUB CAP

1шт.

2

28477700

HUB CAP

1шт.

3

21870750

BEARING CONE

0.75" Bore - Timken #LM11949

1шт.

3

21871250

ROLLER BEARING,31.77 mm ID x 16.76 mm

1.25" Bore

1шт.

4

21881780

BEARING CUP

1.78" O.D. - Timken #LM11910

1шт.

4

21882330

BEARING, CUP,31.77 mm ID x 59.15 mm OD x 16.08 mm

2.33" O.D. - Timken #LM67010

1шт.

5

S0000210

BOLT

1/2" x 1-1/4" NF Hex. Gd. 5

4шт.

5

16308053

1/2" x 1" NF, Gd. 5

6шт.

6

21882330

BEARING, CUP,31.77 mm ID x 59.15 mm OD x 16.08 mm

2.33" O.D. - Timken #LM67010

1шт.

6

21882890

BEARING, CUP,41.288 mm ID x 73.456 mm OD x 19.76 mm

2.89" O.D. - Timken #LM501310

1шт.

7

21871250

ROLLER BEARING,31.77 mm ID x 16.76 mm

1.25" Bore - Timken #LM67048

1шт.

7

21871630

ROLLER BEARING,41.288 mm ID x 19.76 mm

1.62" Bore - Timken #LM501349

1шт.

8

21931501

SEAL ASSY.

1.50" I.D. x 2.33" O.D. - CR #I497

1шт.

8

21931870

SEAL

3.00" O.D. x 1.875" I.D. - CR #I8823

1шт.

9

NSS

NOT SOLD SEPARAT

5/32" x 1-1/2" Cotter Pin

1шт.

10

NSS

NOT SOLD SEPARAT

3/4" NF Slotted Nut

1шт.

10

NSS

NOT SOLD SEPARAT

7/8" NF Slotted Nut

1шт.

11

NSS

NOT SOLD SEPARAT

3/4" Standard Washer

1шт.

11

17014002

WASHER

7/8" Special

1шт.

12

28363311

AXLE

Spindle

1шт.

12

28378305

SPINDLE

1шт.

13

28263340

HUB

633 With Cups

1шт.

13

28278300

HUB

783 With Cups

1шт.
