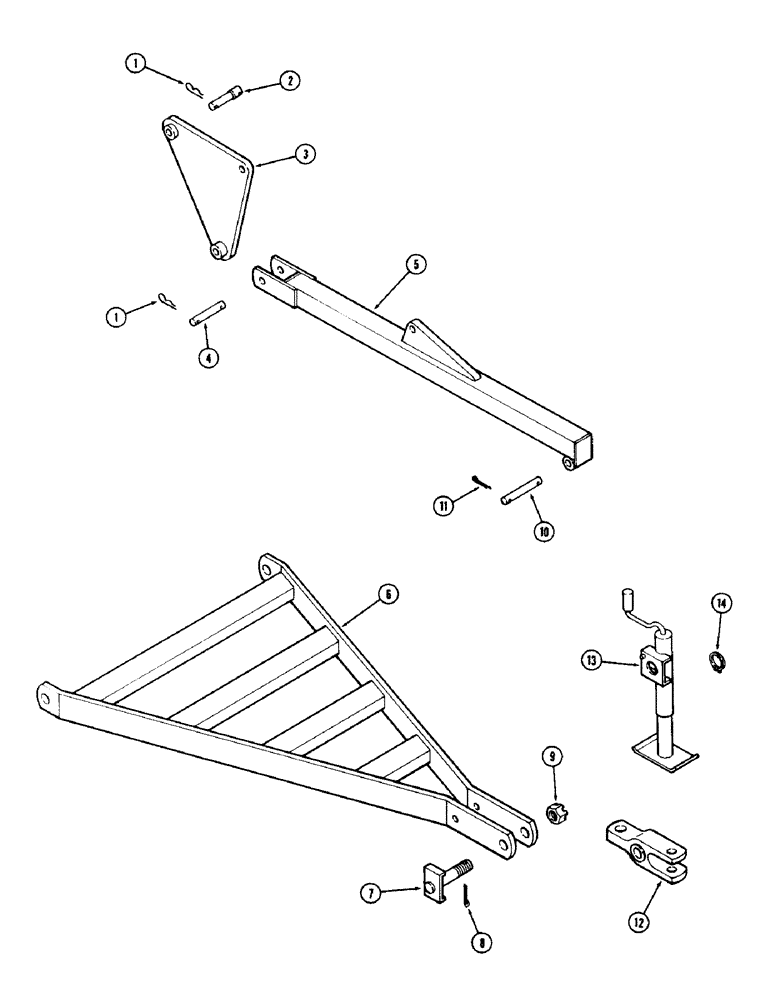

Запчасти Case IH 513V (14) - TRAIL HITCH

1

T40222

SPLIT PIN/SAFETY PIN

COTTER - hairpin

4шт.

2

T55403

PIN

- mast

1шт.

3

T56570

TRIANGLE - leveling

1шт.

4

T55448

PIN - radius rod upper 1 x 5-3/4"

1шт.

5

T56571

ROD - radius

1шт.

6

T56094

TRAILER HITCH

HITCH - pull

1шт.

7

T55046

PIN - clevis

1шт.

8

132-352

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

9

25-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - 1-1/2" NC hex slotted

1шт.

10

T54706

PIN - radius rod lower 1 x 6-1/2"

1шт.

11

132-101

PIN,3/16" x 2 1/4"

Split (Cotter), 3/16" x 2 1/4"

2шт.

12

T56095

CLEVIS

- reversible

1шт.

13

T56096

JACK - hitch

1шт.

T63259

KIT - jack crank assembly (Not illustrated)

1шт.

T63260

KIT - jack plunger assembly (Not illustrated)

1шт.

T63261

KIT - jack screw assembly (Not illustrated)

1шт.

T63262

KIT - jack inner ram assembly (Not illustrated)

1шт.

14

T33700

SNAP RING,#250, Ext

Ring, Snap, #250, Ext

1шт.
