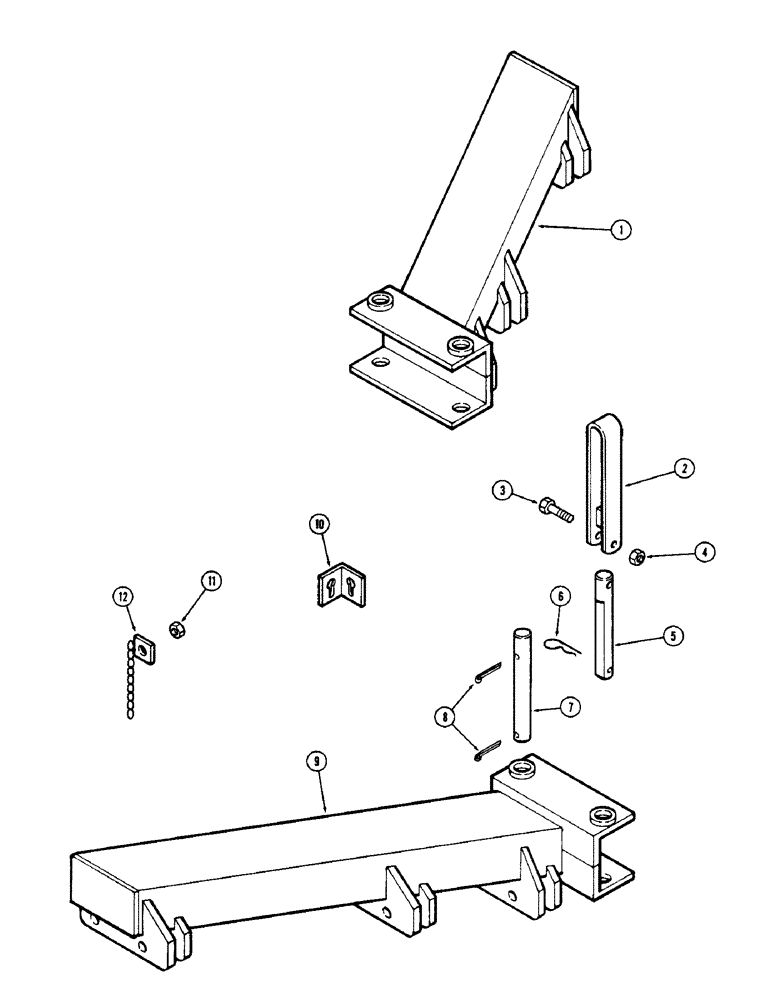

Запчасти Case IH 513V (12) - EXTENSIONS, DOUBLE SHANK

1

T55415

EXTENSION - LH

1шт.

2

T55412

HANDLE - lock pin

2шт.

3

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

4

230-4216

LOCK NUT,3/8"-16, GA

NUT - lock 3/8" NC hex

2шт.

5

T55411

PIN - lock

2шт.

6

T40222

SPLIT PIN/SAFETY PIN

COTTER - hairpin

2шт.

7

T55410

PIN - hinge

2шт.

8

132-361

COTTER PIN,3/16" x 2 1/2"

3/16" x 2 1/2"

4шт.

9

T55414

EXTENSION - RH

1шт.

10

T55453

CATCH - transport lock

2шт.

11

230-41116

NUT,1"-8, GA

NUT - lock 1" NC hex

4шт.

12

T55452

CHAIN - transport lock

2шт.
