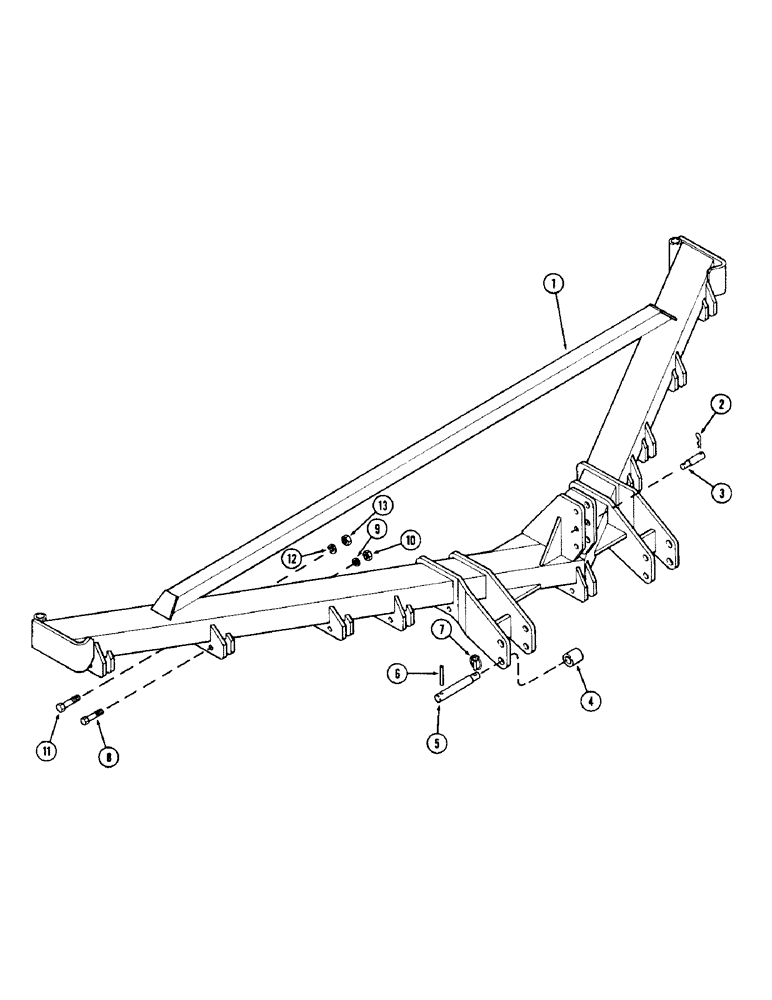

Запчасти Case IH 513V (04) - FRAME, NINE SHANK

1

T55400

FRAME

1шт.

2

T40222

SPLIT PIN/SAFETY PIN

COTTER - hairpin

2шт.

3

T55401

PIN

- mast category III

1шт.

4

T54723

BUSHING

- 3 point hitch

2шт.

5

T55402

PIN

- lower category III

2шт.

6

138-186

LOCK PIN,3/8" x 4", Slotted

Pin, 3/8" x 4", Slotted

2шт.

7

A33509

PIN,11.18mm OD

- klik

2шт.

8

113-831

BOLT,Hex, 7/8" - 9 x 4", Gr 2

- 7/8 x 4" NC hex (Shear bolt) (Grade 2)

9шт.

9

192-29

LOCK WASHER,7/8"

7/8"

9шт.

10

129-109

NUT,7/8"-9, G5

9шт.

11

113-926

BOLT,Hex, 1" - 8 x 4", Gr 5

- 1 x 4" NC hex (Grade 5)

9шт.

12

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

9шт.

13

129-110

NUT,1"-8, G5

9шт.
