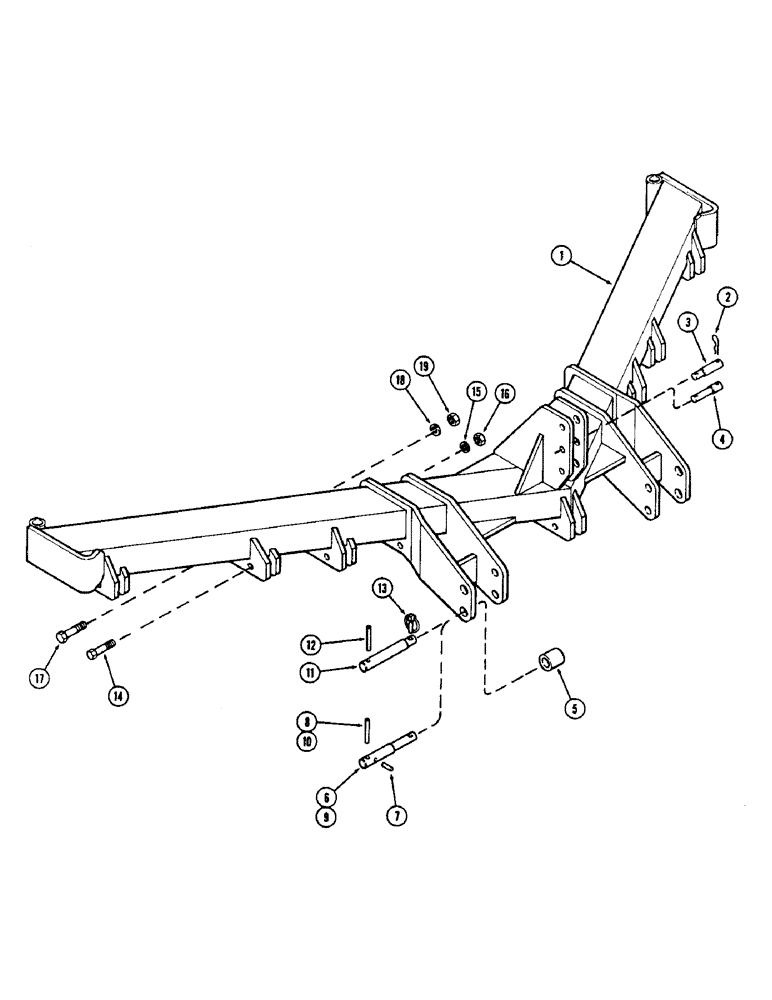

Запчасти Case IH 513V (02) - FRAME, SEVEN SHANK

1

T55416

FRAME

1шт.

2

T40222

SPLIT PIN/SAFETY PIN

COTTER - hairpin

4шт.

3

T55401

PIN

- mast category III

1шт.

4

T55403

PIN

- mast category II

1шт.

5

T54723

BUSHING

- 3 point hitch

2шт.

6

T55404

PIN

- lower category II (Use T56330)

2шт.

7

138-177

LOCK PIN,3/8" x 2", Slotted

PIN, 3/8" x 2", Slotted

2шт.

8

138-186

LOCK PIN,3/8" x 4", Slotted

Pin, 3/8" x 4", Slotted

2шт.

9

T56330

PIN

- lower category II (Replaces T55404 interchangeable)

2шт.

10

138-186

LOCK PIN,3/8" x 4", Slotted

Pin, 3/8" x 4", Slotted

2шт.

11

T55402

PIN

- lower category III

2шт.

12

138-186

LOCK PIN,3/8" x 4", Slotted

ROLLPIN - 3/4 x 4"

2шт.

13

A33509

PIN,11.18mm OD

- klik

4шт.

14

113-831

BOLT,Hex, 7/8" - 9 x 4", Gr 2

- 7/8 x 4" NC hex (Shear bolt) (Grade 2)

7шт.

15

192-29

LOCK WASHER,7/8"

7/8"

7шт.

16

129-109

NUT,7/8"-9, G5

7шт.

17

113-926

BOLT,Hex, 1" - 8 x 4", Gr 5

- 1 x 4" NC hex (Grade 5)

7шт.

18

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

7шт.

19

129-110

NUT,1"-8, G5

7шт.
