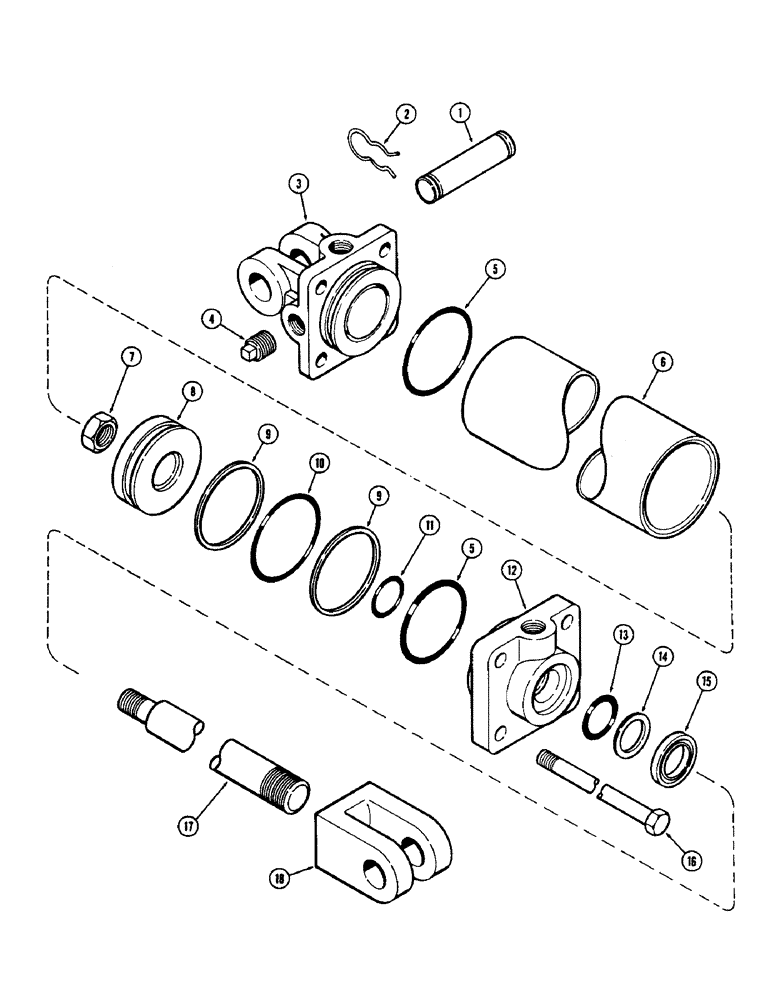

Запчасти Case IH 513V (26) - T56572 CYLINDER

T56572

CYLINDER - hydraulic complete

2шт.

1

T53058

PIN

- clevis

2шт.

2

T52926

CLIP

COTTER - hairpin

4шт.

3

T55580

BUTT - clevis

1шт.

4

221-1844

PLUG,Hex Soc, 1/2"-14

- pipe 1/2"

1шт.

5

T55583

O-RING

2шт.

Part of seal kit P/N T63240

1шт.

6

T56586

TUBE - cylinder

1шт.

7

131-1151

NUT - piston rod 3/4" NF

1шт.

8

T55581

PISTON

1шт.

9

H752030

RING

WASHER - backup

2шт.

Part of seal kit P/N T63240

1шт.

10

T32305

O-RING,0.21" Thk x 3.1" ID, -338, Cl 5, 75 Duro

1шт.

Part of seal kit P/N T63240

1шт.

11

D32114

O-RING,0.75" ID x 0.875" OD

1шт.

Part of seal kit P/N T63240

1шт.

12

T56985

GLAND

HEAD - cylinder

1шт.

13

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1шт.

Part of seal kit P/N T63240

1шт.

14

L32992

RING

WASHER - backup

1шт.

Part of seal kit P/N T63240

1шт.

15

T53294

WIPER SEAL

WIPER - rod

1шт.

Part of seal kit P/N T63240

1шт.

16

T56588

ROD - tie

4шт.

17

T56585

ROD - piston

1шт.

18

T53290

CLEVIS

1шт.

T63240

KIT - seal, Includes: Ref. 5, 9, 10, 11, 13, 14 and 15

1шт.
