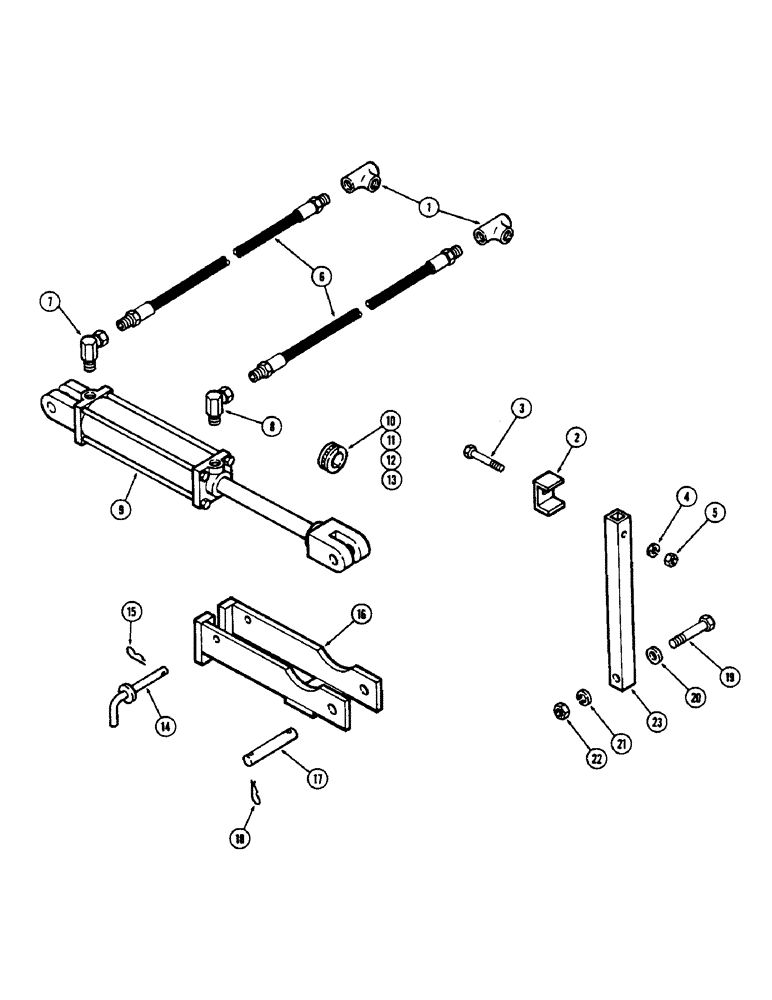

Запчасти Case IH 513V (24) - HYDRAULIC LIFT ASSEMBLY

1

221-424

TEE,1/2" NPT

- 1/2"

2шт.

2

T56086

CLAMP - hose

2шт.

3

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

6

D54490

HOSE ASSY.

HOSE - hydraulic 1/2 x 74"

4шт.

7

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

- swivel 1/2"

2шт.

8

218-962

ELBOW,90 Degree, .093" Restrictor

- swivel 1/2" with 3/32" restrictor

2шт.

9

T56572

CYLINDER - hydraulic 3-1/2 x 14" (See page 26)

2шт.

10

T56573

COLLAR SET - stroke control

2шт.

11

T56582

COLLAR - 1"

2шт.

12

T56583

COLLAR - 1-1/4"

1шт.

13

T56584

COLLAR - 1-1/2"

1шт.

14

T56112

PIN

- lockout

2шт.

15

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

PIN, SPLIT (COTTER), , Hair Int, 7/16" x .177"

2шт.

16

T56574

LOCKOUT - cylinder

2шт.

17

T56111

PIN

2шт.

18

T40222

SPLIT PIN/SAFETY PIN

COTTER - hairpin

4шт.

19

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8 x 4" NC hex (Grade 5)

2шт.

20

195-541

WASHER,5/8", SAE

- 1-5/16 x 21/32" x 12 gauge

2шт.

21

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

22

129-107

NUT,5/8"-11, G5

2шт.

23

T56575

BRACKET - hose clamp

2шт.
