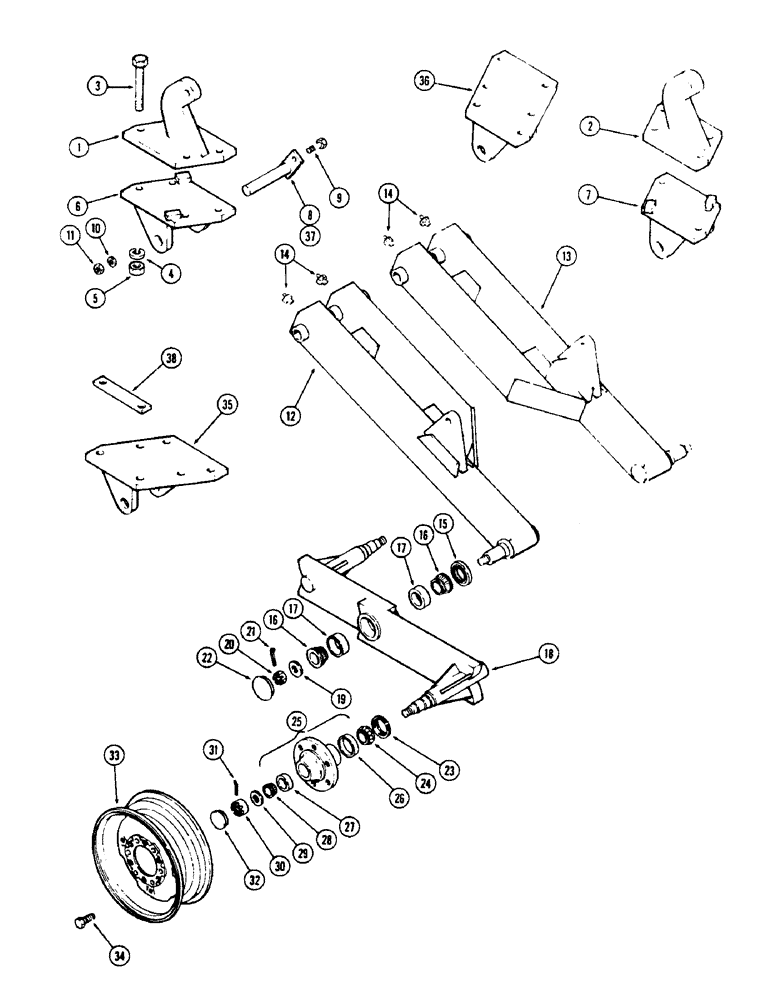

Запчасти Case IH 513V (23A) - GAUGE WHEEL, HYDRAULIC, SERIAL NUMBER 1634813 THRU SERIAL NUMBER 1637399, WILTON HUB, W888

1

T55567

ANCHOR - cylinder RH

1шт.

2

T55568

ANCHOR - cylinder LH

1шт.

3

113-759

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

- 3/4 x 7-1/2" NC hex (Grade 5)

12шт.

4

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

12шт.

5

129-148

JAM NUT,Jam, 3/4"-10, G5

- 3/4" NC hex

12шт.

6

T55565

ANCHOR

- arm RH

1шт.

7

T55566

ANCHOR - arm LH

1шт.

8

T55572

PIN

- pivot 7-3/4"

2шт.

9

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

12

T56578

ARM - gauge wheel RH

1шт.

13

T56577

ARM - gauge wheel LH

1шт.

14

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

4шт.

15

F37383

SEAL

- grease

2шт.

16

T33023

ROLLER BEARING

CONE - bearing

4шт.

17

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing

4шт.

18

T57623

BEAM - gauge wheel

2шт.

19

195-53

WASHER,1" x 2" x .134"

- 2 x 1-1/16" x 8 gauge

2шт.

20

25-1316

NUT,1"-14, G5

NUT, SLOTTED, 1"-14, G5

2шт.

21

132-306

COTTER PIN,3/16" x 1 3/4"

PIN, SPLIT (COTTER), 3/16" x 1 3/4"

2шт.

22

T56587

CAP - dust

2шт.

23

T57618

SEAL,41.27mm ID x 65.18mm OD x 11.13mm Thk

SEAL - grease

4шт.

24

T54089

ROLLER BEARING,38 mm ID x 17.076 mm

CONE - bearing inner

4шт.

25

T57616

HUB

ASSEMBLY - with cups

4шт.

26

T54090

BEARING CUP,63 mm OD x 13.5 mm

CUP - bearing inner

1шт.

27

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing outer

1шт.

28

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing outer

4шт.

29

195-53

WASHER,1" x 2" x .134"

- 2 x 1-1/16" x 8 gauge

4шт.

30

25-1316

NUT,1"-14, G5

NUT, SLOTTED, 1"-14, G5

4шт.

31

132-306

COTTER PIN,3/16" x 1 3/4"

PIN, SPLIT (COTTER), 3/16" x 1 3/4"

4шт.

32

T57617

CAP

- hub

4шт.

33

A57879

RIM

WHEEL - 15 X 8"

4шт.

34

A30064

BOLT

- wheel

24шт.

35

T57389

ANCHOR

- arm RH (Replaces T55565 interchangeable)

1шт.

36

T57388

ANCHOR - arm LH (Replaces T55566 interchangeable)

1шт.

37

T57390

PIN

- pivot 14" (Replaces T55572 interchangeable)

2шт.

38

T57391

BAR - anchor clamping

2шт.
