Заказать запчасти

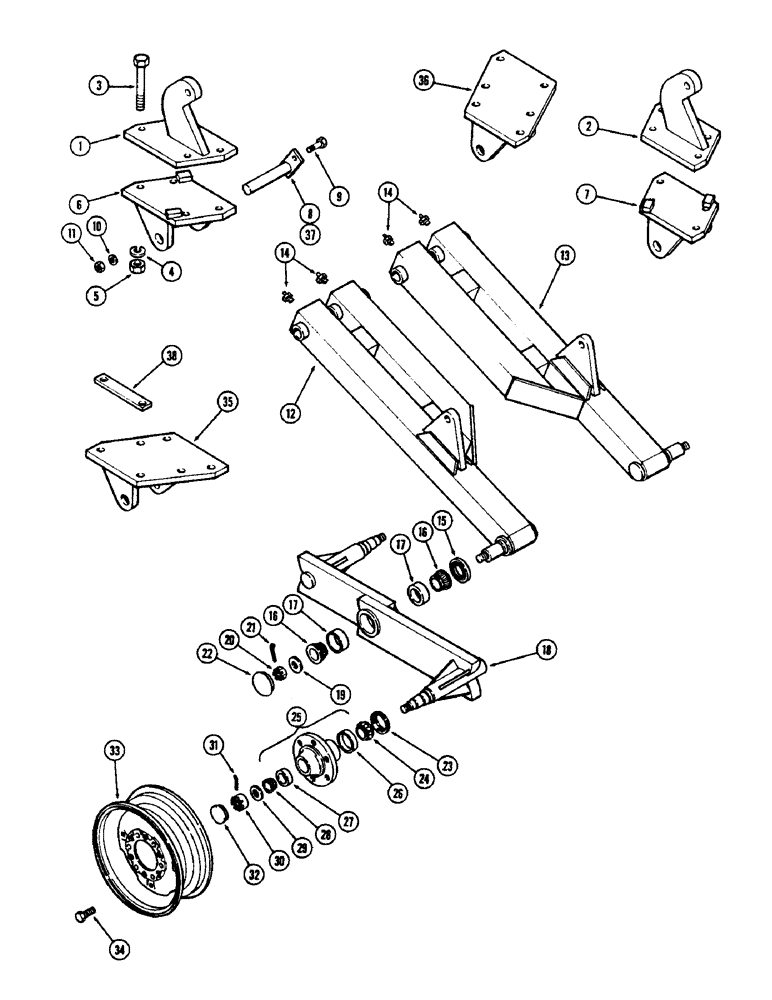

Запчасти Case IH 513V (22) - GAUGE WHEEL, HYDRAULIC, PRIOR TO SERIAL NUMBER 1634813
№
Артикул
Название
Примечание
Количество
1
T55567
ANCHOR - cylinder RH
1шт.
2
T55568
ANCHOR - cylinder LH
1шт.
3
113-759
BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5
- 3/4 x 7-1/2" NC hex (Grade 5)
12шт.
4
192-27
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
12шт.
5
129-148
JAM NUT,Jam, 3/4"-10, G5
- 3/4" NC hex
12шт.
6
T55565
ANCHOR
- arm RH
1шт.
7
T55566
ANCHOR - arm LH
1шт.
8
T55572
PIN
- pivot 7-3/4"
2шт.
9
113-421
BOLT,Hex, 1/2" - 13 x 2", Gr 5
2шт.
10
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
11
129-105
NUT,Hex, 1/2" - 13, Gr 5
2шт.
12
T56578
ARM - gauge wheel RH
1шт.
13
T56577
ARM - gauge wheel LH
1шт.
15
F37383
SEAL
- grease
2шт.
16
T33023
ROLLER BEARING
CONE - bearing
4шт.
17
A29062
ROLLER BEARING,82.956 mm OD x 19.101 mm
CUP - bearing
4шт.
18
T56576
BEAM - gauge wheel
2шт.
19
195-53
WASHER,1" x 2" x .134"
- 2 x 1-1/16" x 8 gauge
2шт.
20
25-1316
NUT,1"-14, G5
NUT, SLOTTED, 1"-14, G5
2шт.
21
132-306
COTTER PIN,3/16" x 1 3/4"
PIN, SPLIT (COTTER), 3/16" x 1 3/4"
2шт.
22
T56587
CAP - dust
2шт.
23
T52277
SEAL
- grease
4шт.
24
H747758
TAPERED BEARING,38.1 mm ID x 18.034 mm
CONE - bearing inner
4шт.
25
T53229
HUB
ASSEMBLY - with cups
4шт.
26
H751370
BEARING CUP
CUP - bearing inner
1шт.
27
B12408
BEARING CUP,59.156 mm OD x 11.862 mm
CUP - bearing outer
1шт.
28
B12409
BEARING, ROLLER,31.763 mm ID x 16.84 mm
CONE - bearing outer
4шт.
29
195-53
WASHER,1" x 2" x .134"
- 2 x 1-1/16" x 8 gauge
4шт.
30
25-1316
NUT,1"-14, G5
NUT, SLOTTED, 1"-14, G5
4шт.
31
132-306
COTTER PIN,3/16" x 1 3/4"
PIN, SPLIT (COTTER), 3/16" x 1 3/4"
4шт.
32
T23707
CAP
- hub
4шт.
33
A57879
RIM
WHEEL - 15 X 8"
4шт.
34
A30064
BOLT
- wheel
24шт.
35
T57389
ANCHOR
- arm RH (Replaces T55565 interchangeable)
1шт.
36
T57388
ANCHOR - arm LH (Replaces T55566 interchangeable)
1шт.
37
T57390
PIN
- pivot 14" (Replaces T55572 interchangeable)
2шт.
38
T57391
BAR - anchor clamping
2шт.
Выбрано товаров: 38
