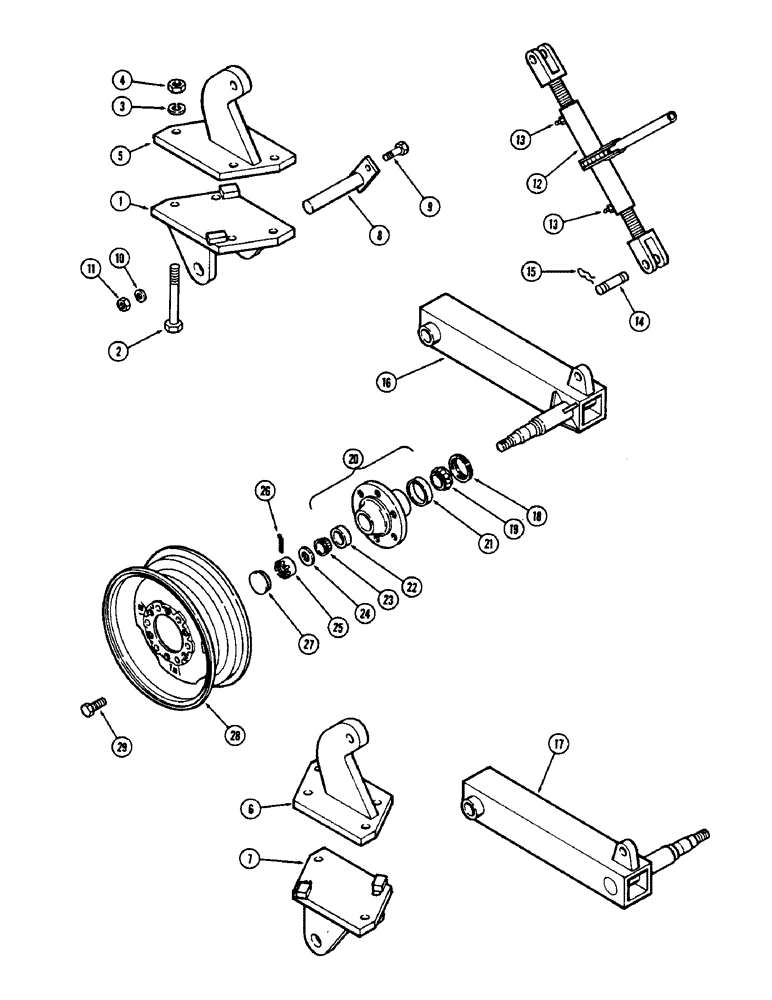

Запчасти Case IH 513V (18) - GAUGE WHEEL, SCREW ADJUSTED, SINGLE, PRIOR TO SERIAL NUMBER 1634813

1

T55565

ANCHOR

- arm RH

1шт.

2

113-759

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

- 3/4 x 7-1/2" NC hex (Grade 5)

8шт.

3

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

4

129-108

NUT,3/4"-10, G5

8шт.

5

T55567

ANCHOR - cylinder RH

1шт.

6

T55568

ANCHOR - cylinder LH

1шт.

7

T55566

ANCHOR - arm LH

1шт.

8

T55572

PIN

- pivot

2шт.

9

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

12

T55573

TURNBUCKLE ASSEMBLY

2шт.

13

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease 1/4"

2шт.

14

T55574

PIN - 1 x 2-7/8"

2шт.

15

136-62

HAIR PIN COTTER

COTTER - hairpin

4шт.

16

T55570

ARM - short RH

1шт.

17

T55571

ARM - short LH

1шт.

18

T52277

SEAL

- grease

2шт.

19

H747758

TAPERED BEARING,38.1 mm ID x 18.034 mm

CONE - bearing inner

2шт.

20

T53229

HUB

ASSEMBLY - with cups

2шт.

21

H751370

BEARING CUP

CUP - bearing inner

1шт.

22

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing outer

1шт.

23

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing outer

2шт.

24

195-53

WASHER,1" x 2" x .134"

- 2 x 1-1/16" x 8 gauge

2шт.

25

25-1316

NUT,1"-14, G5

NUT, SLOTTED, 1"-14, G5

2шт.

26

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), (Order 132-99) 3/16" x 1 1/2"

2шт.

27

T23707

CAP

- hub

2шт.

28

A57879

RIM

WHEEL - 15 X 8"

2шт.

29

A30064

BOLT

- wheel

12шт.
