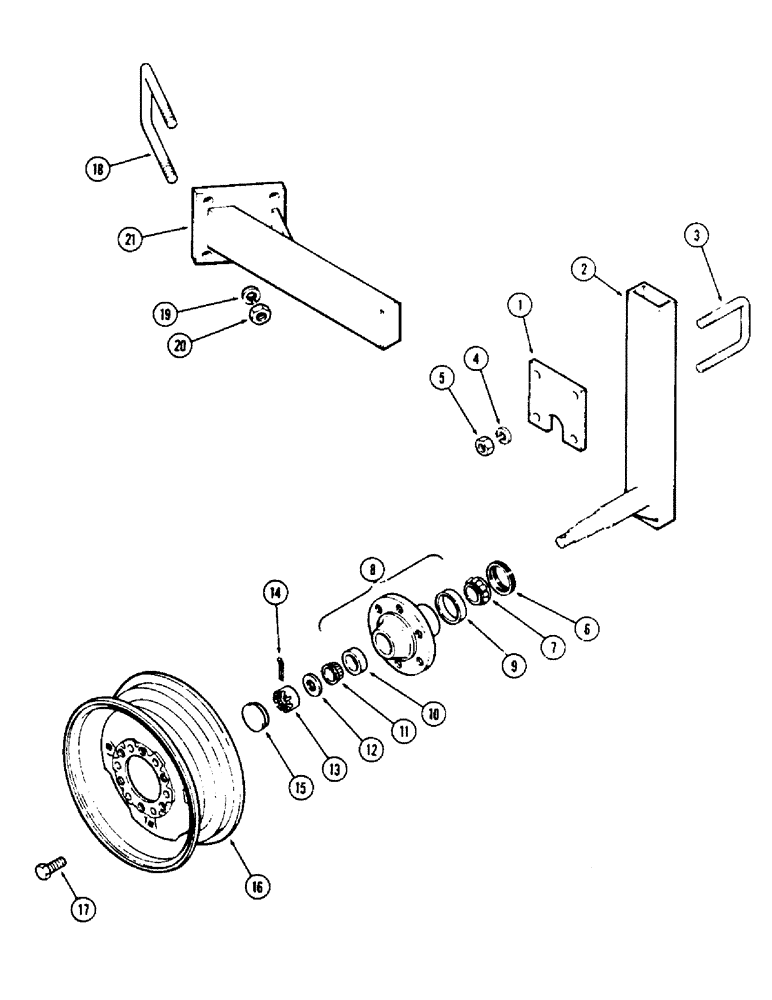

Запчасти Case IH 513V (17A) - GAUGE WHEEL, CLAMP ADJUSTED, SERIAL NUMBER 1634813 THRU SERIAL NUMBER 1637399, WILTON HUB, W888

1

T54719

PLATE - clamp

1шт.

2

T57620

SPINDLE

1шт.

3

T55471

U-BOLT

2шт.

4

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

129-107

NUT,5/8"-11, G5

4шт.

6

T57618

SEAL,41.27mm ID x 65.18mm OD x 11.13mm Thk

SEAL - grease

1шт.

7

T54089

ROLLER BEARING,38 mm ID x 17.076 mm

CONE - bearing inner

1шт.

8

T57616

HUB

ASSEMBLY - with cups

1шт.

9

T54090

BEARING CUP,63 mm OD x 13.5 mm

CUP - bearing inner

1шт.

10

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing outer

1шт.

11

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing outer

1шт.

12

195-53

WASHER,1" x 2" x .134"

- 2 x 1-1/16" x 8 gauge

1шт.

13

25-1316

NUT,1"-14, G5

NUT, SLOTTED, 1"-14, G5

1шт.

14

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), (Order 132-99) 3/16" x 1 1/2"

1шт.

15

T57617

CAP

- hub

1шт.

16

A57879

RIM

WHEEL - 15 X 8"

1шт.

17

A30064

BOLT

- wheel

6шт.

18

T55408

U-BOLT

2шт.

19

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

20

129-108

NUT,3/4"-10, G5

4шт.

21

T55407

ARM - gauge wheel

1шт.
