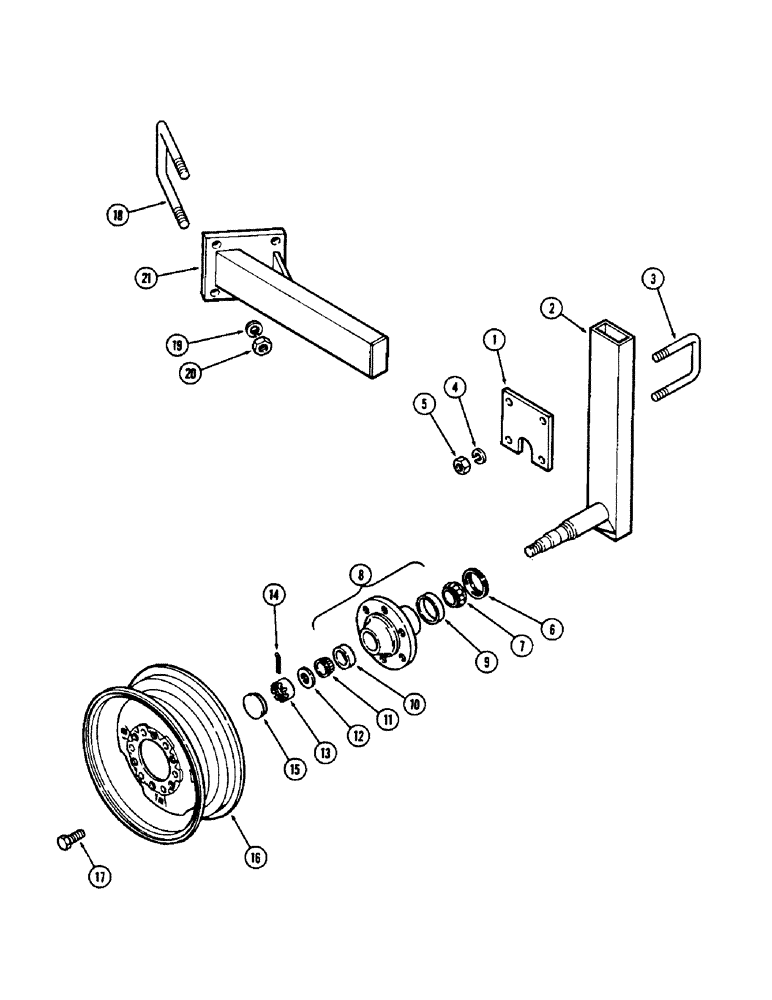

Запчасти Case IH 513V (16) - GAUGE WHEEL, CLAMP ADJUSTED, PRIOR TO SERIAL NUMBER 1634813

1

T54719

PLATE - clamp

1шт.

2

T55470

SPINDLE

1шт.

3

T55471

U-BOLT

2шт.

4

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

129-107

NUT,5/8"-11, G5

4шт.

6

T52277

SEAL

- grease

1шт.

7

H747758

TAPERED BEARING,38.1 mm ID x 18.034 mm

CONE - bearing inner

1шт.

8

T53229

HUB

ASSEMBLY - with cups

1шт.

9

H731370

CUP - bearing inner

1шт.

10

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing outer

1шт.

11

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing outer

1шт.

12

195-53

WASHER,1" x 2" x .134"

- 2 x 1-1/16" x 8 gauge

1шт.

13

25-1316

NUT,1"-14, G5

NUT, SLOTTED, 1"-14, G5

1шт.

14

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), (Order 132-99) 3/16" x 1 1/2"

1шт.

15

T23707

CAP

- hub

1шт.

16

A57879

RIM

WHEEL - 15 X 8"

1шт.

17

A30064

BOLT

- wheel

6шт.

18

T55408

U-BOLT

2шт.

19

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

20

129-108

NUT,3/4"-10, G5

4шт.

21

T55407

ARM - gauge wheel

1шт.
