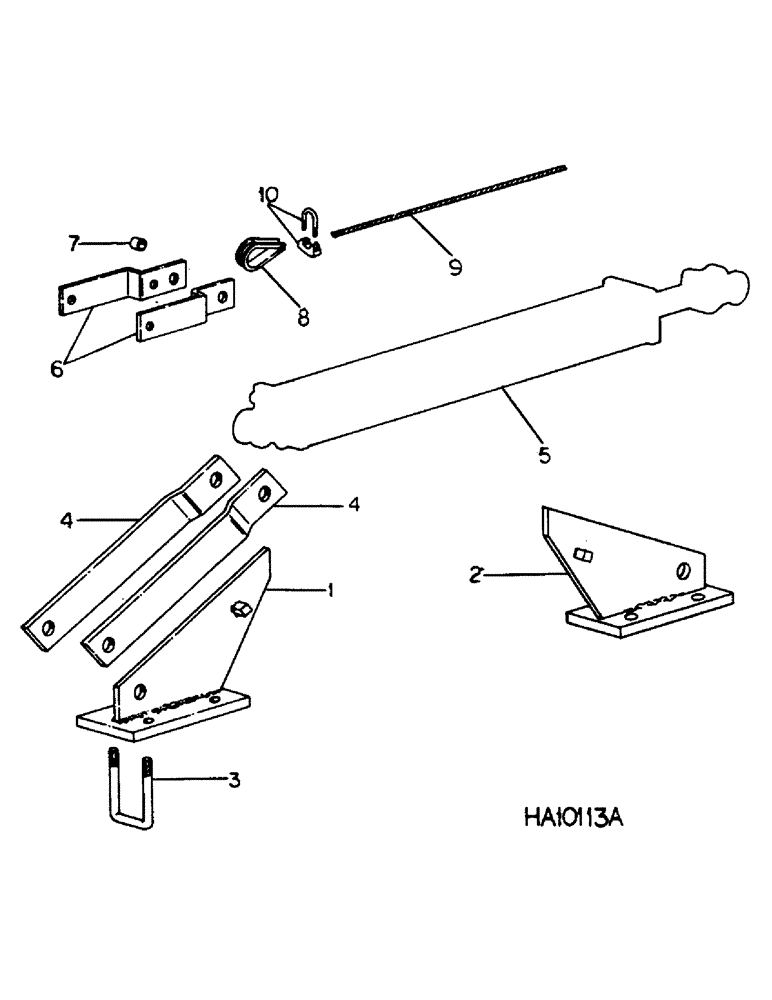

Запчасти Case IH 5000 (J-10) - 5000 VIBRA CHISEL, 17 FOOT WING, HYDRAULIC WING LIFT

1

811660C1

SUPPORT

ASSY, wing lift LH

1шт.

2

811685C1

SUPPORT

ASSY, wing lift RH1

1шт.

3

811655C1

BOLT,5/8" - 11 x 5 1/2"

U-BOLT, support

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

4

811656C1

STRAP, wing lift

4шт.

812460C1

PIN, wing strap

2шт.

19479R1

PIN,1/4" x 2", Coiled

4шт.

609836R1

WASHER

1.031 x 1.750 x .054

8шт.

5

149990C91

CYLINDER

ASSY, hyd 3 x 48 DA, Cross, replaces 811677C91, or

1шт.

5

813238C91

CYLINDER

ASSY, hyd 3 x 48 DA, prince, for components refer to hydraulic cylinders section L

1шт.

6

81167C1

O-RING,17.3mm ID x 2.4mm Width

STRAP, transport wing support

4шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2 x 4 type 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

7

HA4457

SPACER

1/2 x 5/8 std pipe

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

8

605931R1

EYE

THIMBLE, cable

2шт.

9

811671C1

CABLE

3/8 in. dia. 6 x 19 transport wing lift, 122 in.

1шт.

21670R1

HEADED PIN,3/4" x 2 1/4"

PIN, 3/4 x 2.250 hd type 1

2шт.

599744R1

AXLE PIN

PIN, quick-attachable cotter

2шт.

10

605932R91

CLAMP

lift cable

4шт.
