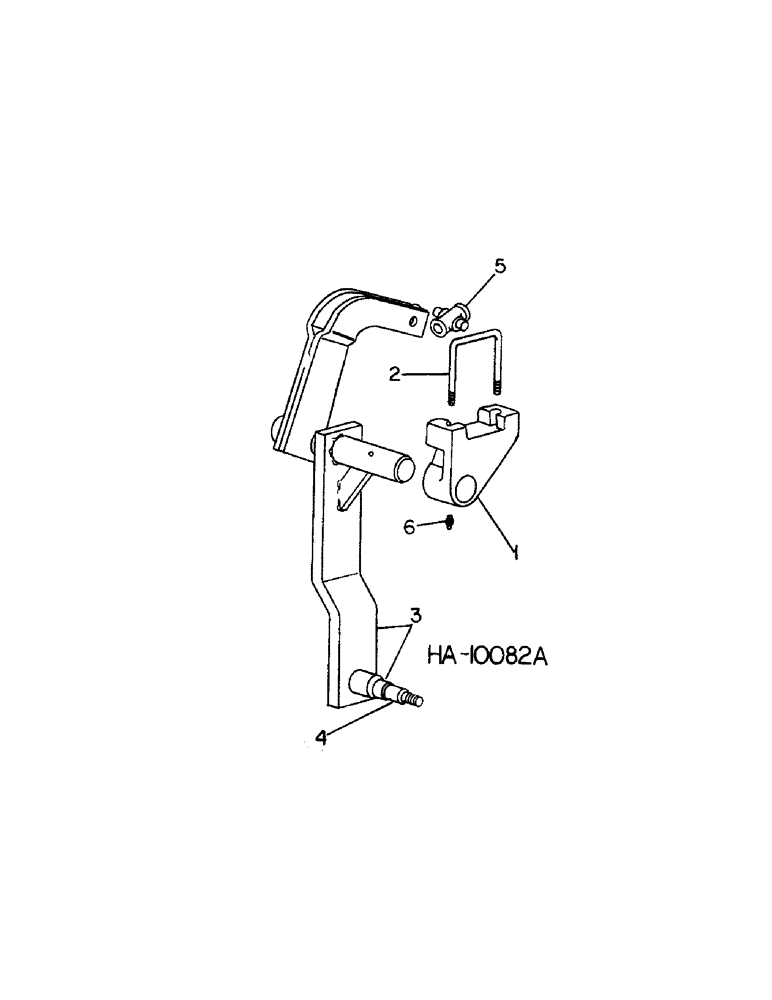

Запчасти Case IH 5000 (J-06[A]) - 5000 VIBRA CHISEL, 17 FOOT WING, WING FRAME AXLE

1

811653C1

AXLE SUPPORT

BEARING, wing axle support

4шт.

2

811655C1

BOLT,5/8" - 11 x 5 1/2"

U-BOLT, support bearing

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

3

811648C11

AXLE

ASSY, wing frame LH

1шт.

3

811649C11

AXLE

ASSY, wing frame RH, includes 1-811159C91 spindle and 1-599210R1, trunnion

1шт.

22811R1

WASHER

2.031 x 2.750 x .067

4шт.

119203

PIN,3/8" x 3"

Split (Cotter), 3/8" x 3"

4шт.

4

811159C91

SPINDLE

ASSY, axle service, includes 1-467750R1, washer, 1-427640, nut & 1-103396, pin

2шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-NF slt type 5

2шт.

467750R1

WASHER

.781 x 1.500 x .105

2шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

2шт.

5

599210R1

TRUNNION

wing frame axle

2шт.

6

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

4шт.
