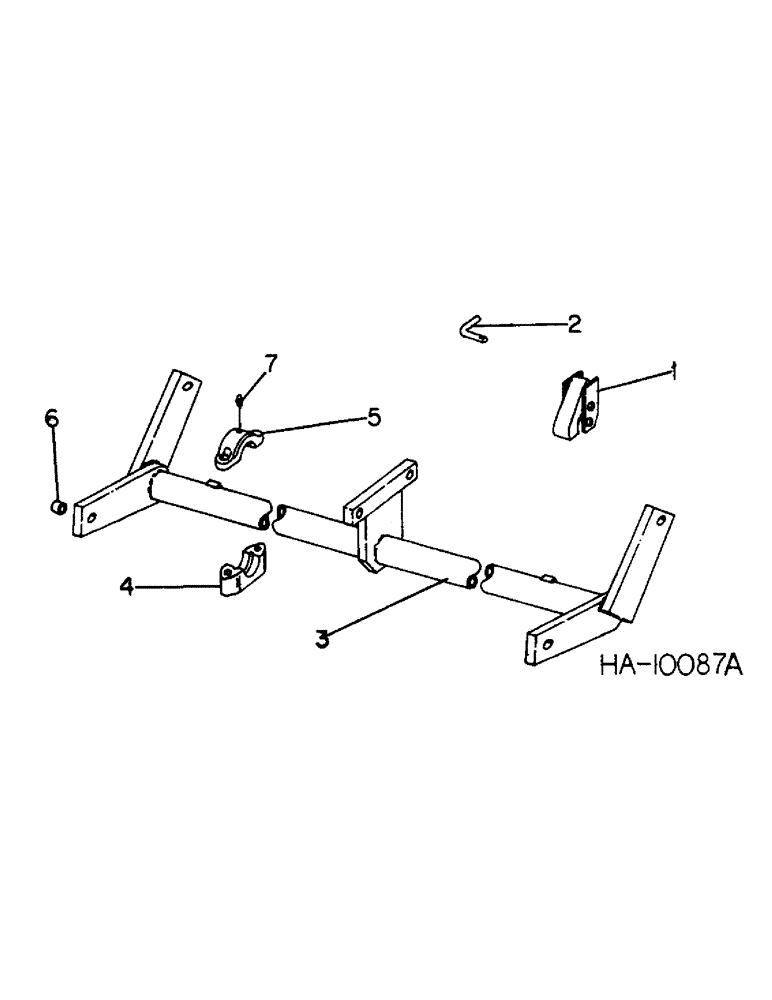

Запчасти Case IH 5000 (J-05) - 5000 VIBRA CHISEL, 17 FOOT WING, ROCKSHAFT

1

811032C1

RETAINER

assy lift cyl

1шт.

591107R1

COTTER PIN

Q.A. cotter

1шт.

21150R1

HEADED PIN,12.7mm OD x 57.15mm L

PIN, 1/2 x 2.250 hd type 1

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

2

602801R1

PIN

retainer locking

1шт.

3

812479C91

ROCKSHAFT

ASSY, main frame, includes 2-591525R1 bushings

1шт.

4

811358C1

CAP

rockshaft lwr brg support

4шт.

5

608311R1

CAP

rockshaft upper brg

4шт.

19827R1

BOLT,Hex, 5/8" - 11 x 8", Gr 5

5/8 x 8 type 5

4шт.

24880R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8

4шт.

6

591525R1

BUSHING

rockshaft outer arm

2шт.

7

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

4шт.
