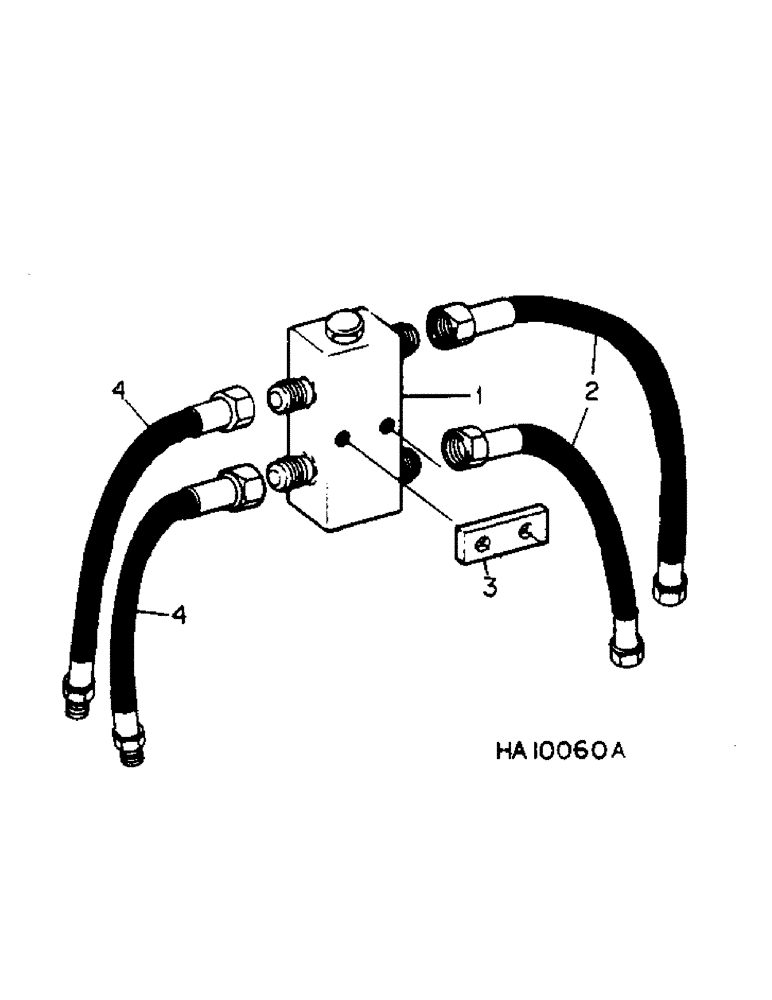

Запчасти Case IH 5000 (H-23) - 5000 VIBRA CHISEL, 31-1/2 FOOT WING, ALTERNATING CHECK VALVE ASSEMBLY

1

142864C95

VALVE

ASSY, check, includes 1-364885R1, 1-368269R1

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

1шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

1шт.

2

125914C1

HOSE

1/2 x 31 in hydraulic

2шт.

3

810201C1

BAR

valve support

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4 type 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

4

117064C1

HOSE

1/2 x 48 in hydraulic

2шт.
