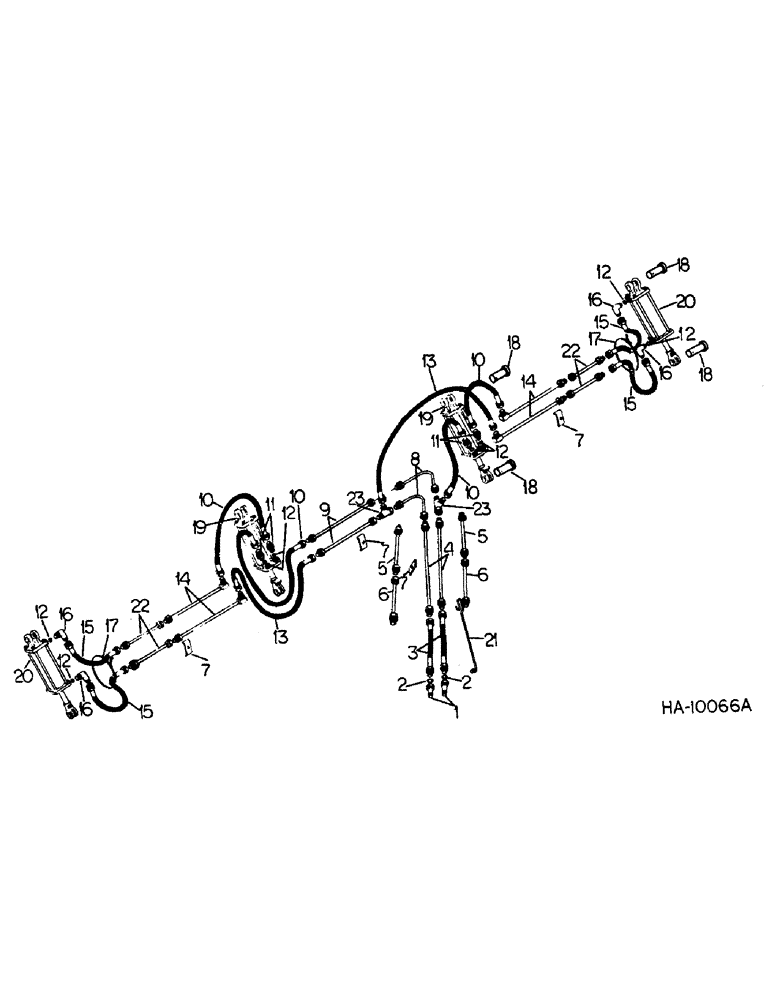

Запчасти Case IH 5000 (H-20) - 5000 VIBRA CHISEL, 31-1/2 FOOT WING, DEPTH CONTROL HYDRAULICS WITH BOLTED CYLINDER

1

395149R1

QUICK MALE COUPLING

COUPLER, hydraulic hose male, or

2шт.

1

544787R91

COUPLING, BREAK AWAY

COUPLER, hydraulic, recommended hydraulic parts

2шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hydraulic coupler, recommended hydraulic parts

2шт.

3

811270C1

HOSE

80 in. hydraulic front not for use w/142864C92 check valve

2шт.

4

TUBE ASSY, 174.8 inch in length, for service order 1-813066C1 tube & 1-813087C1 tube

2шт.

5

813086C1

TUBE,0.375" OD, 87.4" Length

ASSY, hyd front extension

2шт.

6

813087C1

TUBE,0.375" OD, 87.4" Length

ASSY, hydraulic front

2шт.

7

614323R2

CLAMP

hydraulic tube

13шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

9шт.

180085

SPRING

5/16 x 1-3/4 type 5

4шт.

120376

NUT,5/16"-18, G5

13шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

13шт.

8

812670C1

TUBE

ASSY, hydraulic corner

2шт.

9

812668C1

TUBE,0.375" OD, 50.5" Length

ASSY, hydraulic RH cylinders

2шт.

10

813077C1

HOSE ASSY.

HOSE, 55 in. rockshaft master hydraulic cylinder

4шт.

11

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION, 3/4-16 hyd 37 deg flared tube short swivel

4шт.

12

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

41/64 x 13/16 x 3/32

8шт.

13

813006C1

HOSE

85 in. hyd cyl jumper

2шт.

14

813003C1

TUBE,0.375" OD, 64" Length

ASSY, slave cyl hydraulic

4шт.

15

879612C1

HOSE

32.5 in. slave cylinder hyd

4шт.

16

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 hyd 37 deg flared tube 90 deg w/nut & washer

4шт.

17

306132C1

CABLE TIE,14.5" L

TIE, hydraulic hoses, replaces 816502C1

4шт.

18

24581R1

PIN

1 x 3-1/2 std-hd-dld and type 5

8шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

8шт.

19

149920C91

CYLINDER

ASSY, hyd 3.5 x 8 da master IH, replaces 149996C91 & 812735C92, for components refer to hydraulic cylinders section L

2шт.

24581R1

PIN

1 x 3.500 hd type 5

4шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

4шт.

20

149919C92

CYLINDER

ASSY, hyd 3.25 x 8 DA slave, IH, replaces 812736C91

2шт.

87423770R

REMAN-HYD CYLINDER

5000 INTERNATIONAL HARVESTER VIBRA CHISEL, Reman for New P/N 149919C92

2шт.

87423770C

CORE-HYD CYLINDER

Return Number

1шт.

20

810311C91

CYLINDER

ASSY, hyd 3.25 x 8 DA slave, Prince, for components refer to hydraulic cylinders section L

2шт.

87423770R

REMAN-HYD CYLINDER

5000 INTERNATIONAL HARVESTER VIBRA CHISEL, Reman for New P/N 810311C91

2шт.

87423770C

CORE-HYD CYLINDER

Return Number

1шт.

24581R1

PIN

1 x 3.500 hd type 5

4шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

4шт.

21

651793R2

SUPPORT

flexible hose

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 type 5

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.

22

813002C1

TUBE

hyd extension w/E frame

4шт.

23

9410332

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

9/16-18 hyd 37 deg flared tube 90 deg swivel

2шт.
