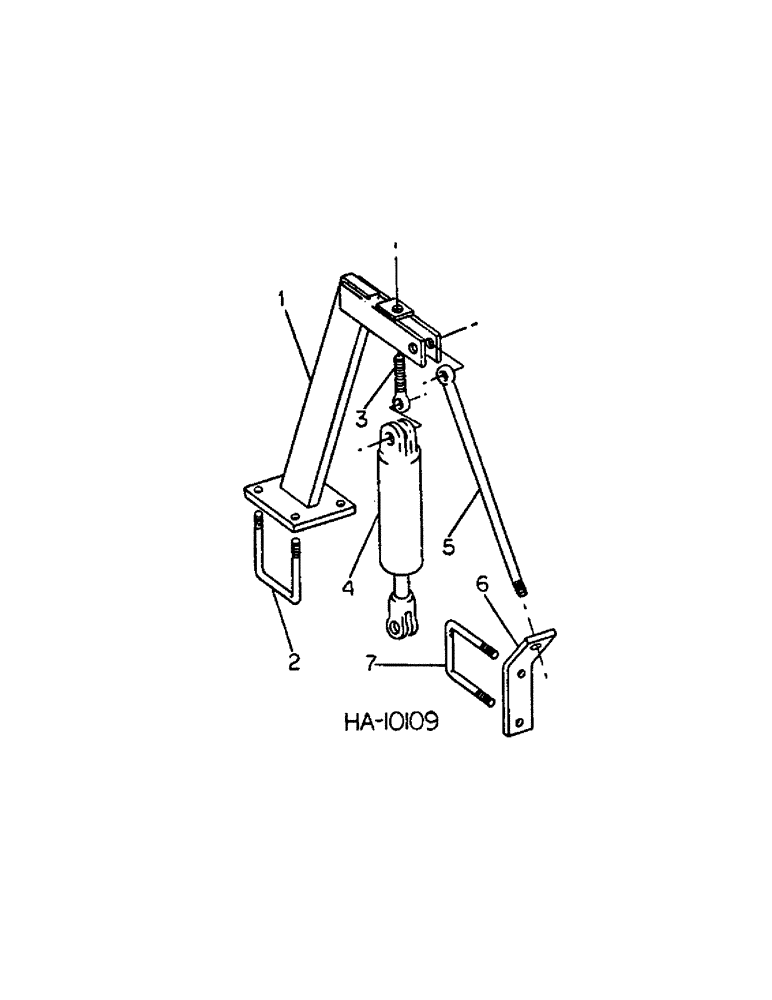

Запчасти Case IH 5000 (H-19[A]) - 5000 VIBRA CHISEL, 31-1/2 FOOT WING, WING FRAME SLAVE CYLINDER SUPPORT

1

810155C1

SUPPORT

ASSY, slave cylinder

2шт.

2

811655C1

BOLT,5/8" - 11 x 5 1/2"

U-BOLT, support mounting

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

3

813200C1

BOLT,7/8" - 9 x 7.50"

slave cylinder eye

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

4

CYLINDER ASSY, slave hydraulic for service cylinders refer to depth control hydraulics

1шт.

24581R1

PIN

1 x 3.500 hd type 5

4шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

4шт.

5

813171C2

ROD

cylinder support tie

2шт.

280954

NUT,3/4"-10, G5

4шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

5/8 x 2-3/4 type 5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

6

810161C1

SUPPORT

tie rod

2шт.

7

812659C1

BOLT,5/8" - 11 x 4.4"

U-BOLT, rod support

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.
