(H-14) - 5000 VIBRA CHISEL, 31-1/2 FOOT WING, ROCKSHAFT CYLINDER SUPPORT

Запчасти Case IH 5000 (H-14) - 5000 VIBRA CHISEL, 31-1/2 FOOT WING, ROCKSHAFT CYLINDER SUPPORT

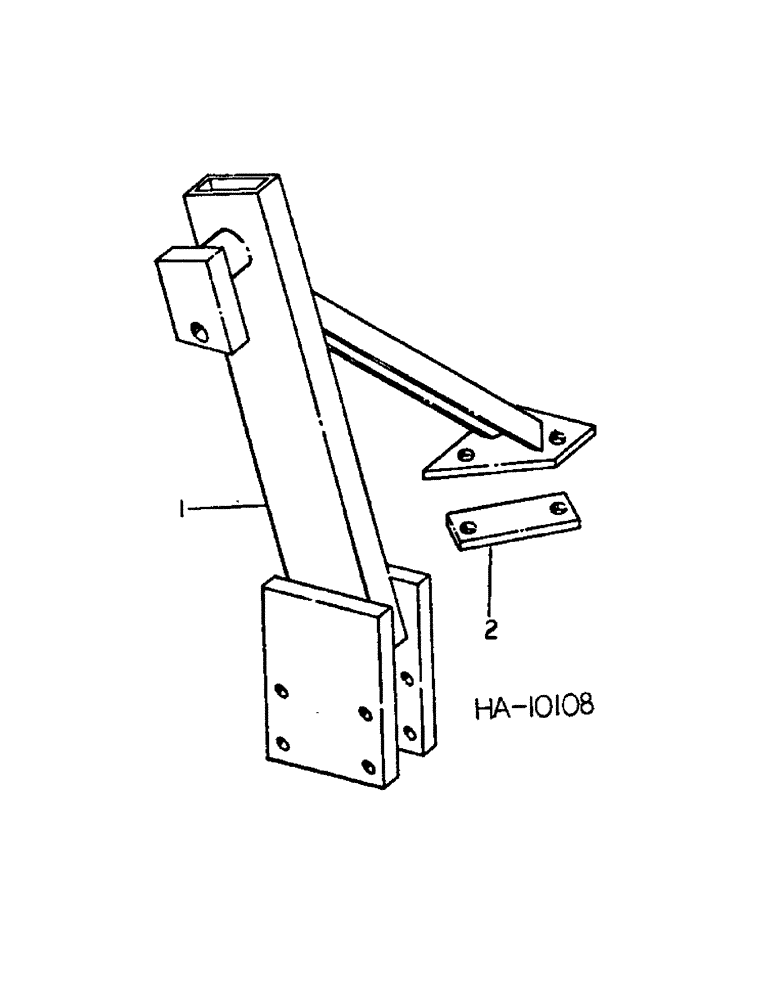

Схема запчастей Case IH 5000 - (H-14) - 5000 VIBRA CHISEL, 31-1/2 FOOT WING, ROCKSHAFT CYLINDER SUPPORT
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

812726C1

SUPPORT

ASSY, rockshaft cylinder LH

1шт.

1

812729C1

SUPPORT

ASSY, rockshaft cylinder RH

1шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

5/8 x 4 type 5

8шт.

23247R1

BOLT

5/8 x 11 type 5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

12шт.

2

812662C1

BAR

support

2шт.
