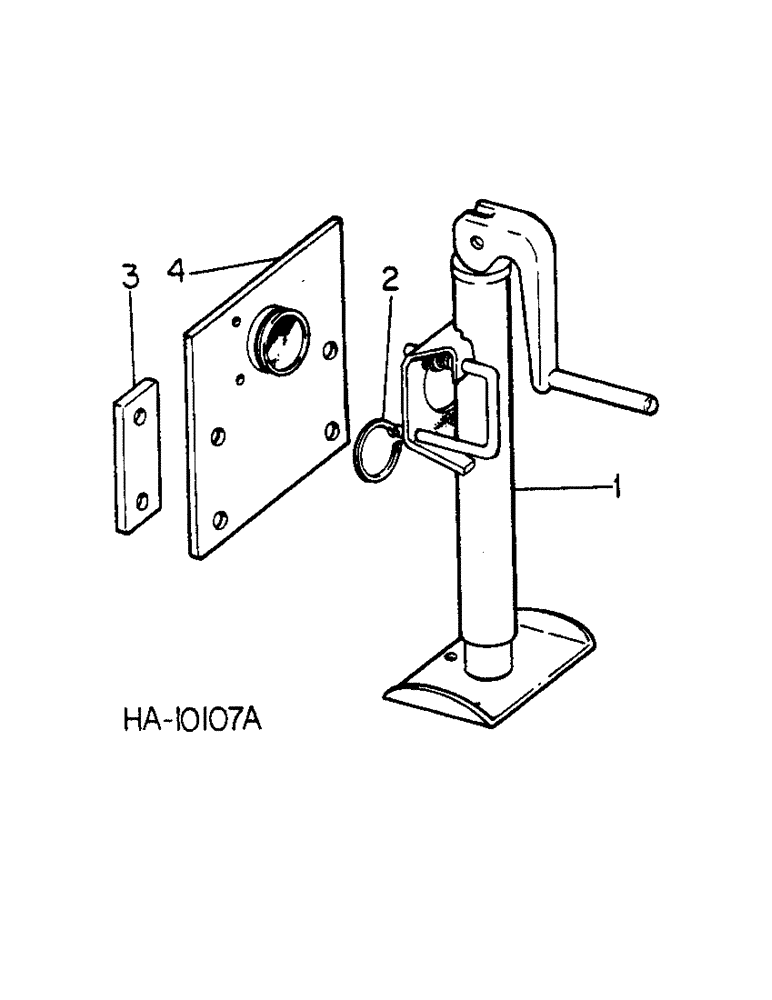

Запчасти Case IH 5000 (H-13) - 5000 VIBRA CHISEL, 31-1/2 FOOT WING, HITCH JACK

1

810009C91

JACK

ASSY, hitch

1шт.

2

24592R1

SNAP RING,#250, Ext

Ring, Snap, , jack #250, Ext

1шт.

3

813052C1

BAR

support plate mounting

2шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

5/8 x 4 type 5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

812694C1

PLATE

jack support

1шт.
