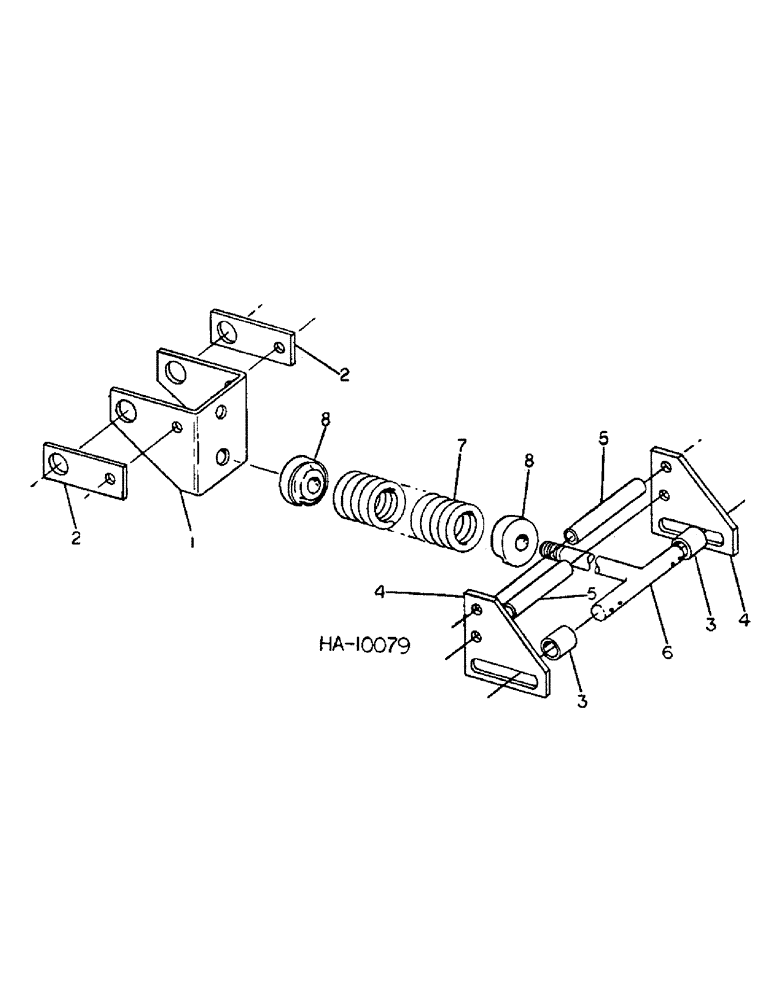

Запчасти Case IH 5000 (H-12) - 5000 VIBRA CHISEL, 31-1/2 FOOT WING, WING LIFT UNIT HELPER SPRING

1

810167C1

CHANNEL

spring support

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

4шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

280954

NUT,3/4"-10, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

2

(Not used this application)

1шт.

3

(Not used this application)

1шт.

4

810169C1

BAR

spring holder support

4шт.

445608

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

1/2 x 5-1/2 type 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

5

F18186

SPACER,1/2" Pipe x 3 1/4"

1/2 x 3.250 std-pipe

4шт.

6

810163C1

HOLDER

ASSY, spring

2шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

4шт.

21753R1

WASHER

.781 x 1.500 x .203 pln

4шт.

280954

NUT,3/4"-10, G5

4шт.

7

608347R1

SPRING

wing lowering

2шт.

8

608348R1

RETAINER

spring

4шт.
