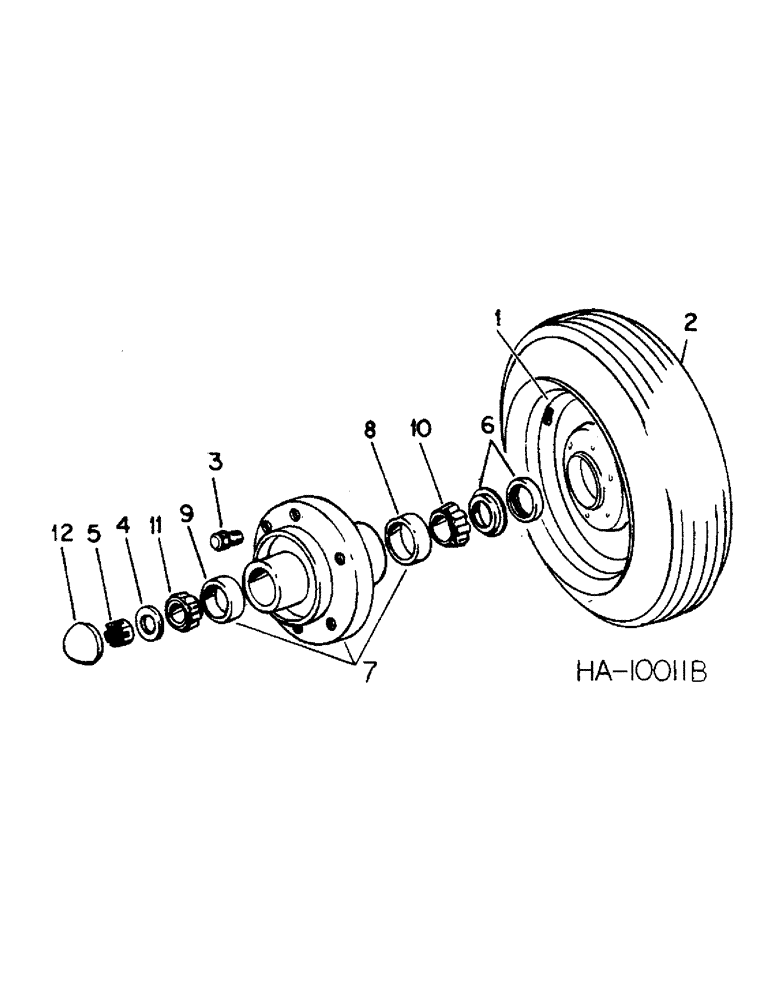

Запчасти Case IH 5000 (H-07) - 5000 VIBRA CHISEL, 31-1/2 FOOT WING, WHEEL AND HUB, MAIN FRAME

1

811389C1

RIM

WHEEL, 14 x 6 KB

4шт.

2

TIRE, 9.5L-14 6 ply tubeless

4шт.

810768C1

VALVE

tubeless tire steel

4шт.

3

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2-20 x 7/8 wheel

24шт.

4

619373R1

WASHER

.906 x 2.000 x .064

4шт.

5

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 hex sltd

4шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

4шт.

6

606556R91

OIL SEAL

SEAL ASSY, wheel hub oil

4шт.

7

606468R11

HUB

ASSY, main wheel frame, includes 1-663558R1, cup and 1-651817R1, cup

4шт.

8

663558R1

BEARING CUP

CUP, wheel hub inner bearing

4шт.

9

651817R1

BEARING CUP

CUP, wheel hub outer bearing

4шт.

10

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, wheel hub inner bearing

4шт.

11

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, wheel hub outer bearing

4шт.

12

663906R1

CAP

wheel hub

4шт.

811382C1

PACKAGE

tire valve guard service

1шт.
