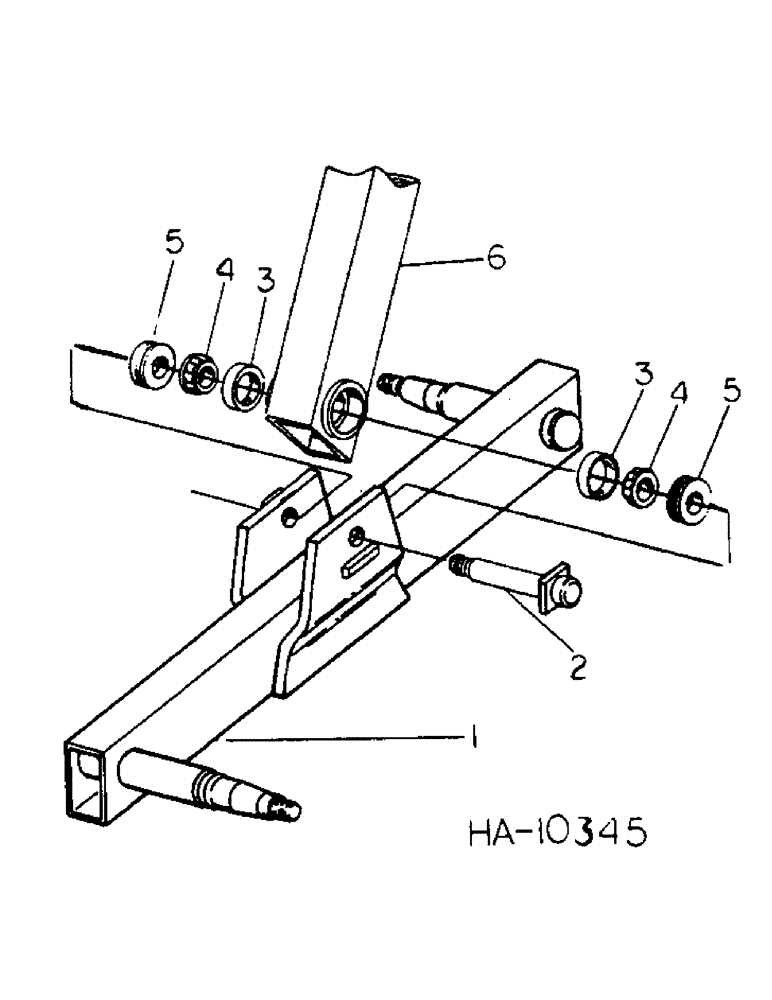

Запчасти Case IH 5000 (H-06) - 5000 VIBRA CHISEL, 31-1/2 FOOT WING, MAIN FRAME AXLE

1

811396C91

AXLE

ASSY, main frame LH

1шт.

1

811397C91

AXLE

ASSY, main frame RH, includes 2-619373R1, washer, 2-70120D, nut and 2-103387, pin

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 slt hex jam

4шт.

619373R1

WASHER

.906 x 2.000 x .164 pln

4шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

4шт.

2

813121C1

STUD

STUD ASSY, axle pivot

2шт.

427652

SLOTTED NUT,1"-14, G5

NUT, 1-NF slt type 5

2шт.

103389

SPLIT PIN/SAFETY PIN,1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

2шт.

3

651817R1

BEARING CUP

CUP, axle pivot bearing

4шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, axle pivot bearing

4шт.

5

813159C2

SEAL

ASSY, axle pivot

4шт.

6

812601C2

SHAFT

ROCKSHAFT ASSY, main frame, Serial Range: refer-rockshaft

1шт.
