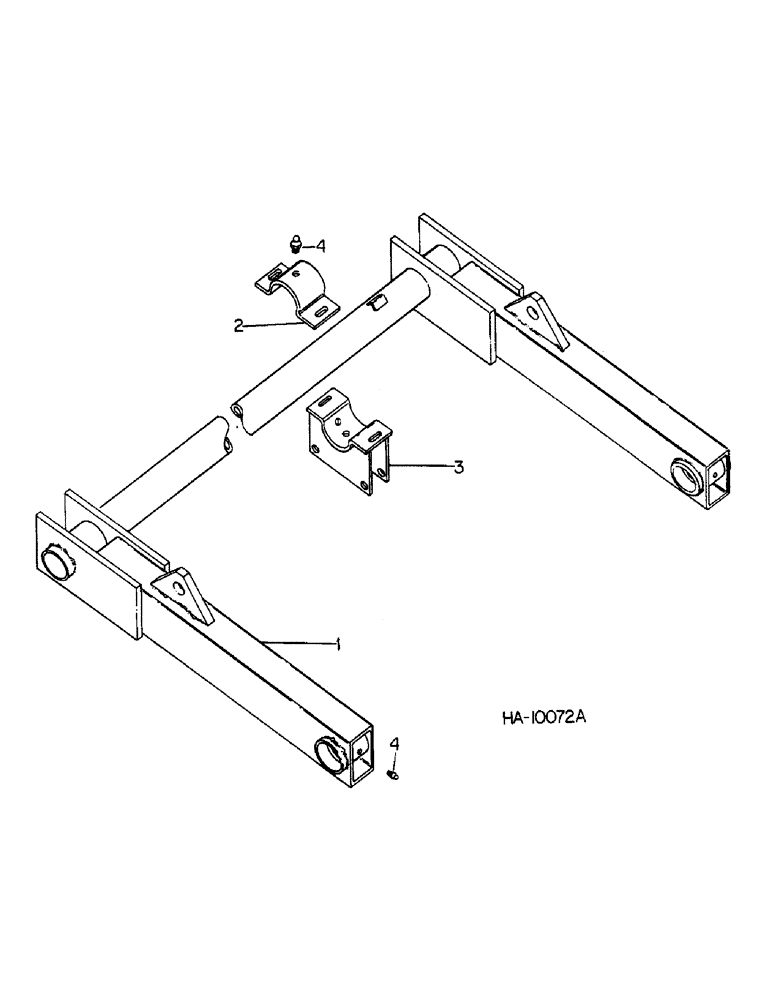

Запчасти Case IH 5000 (H-05) - 5000 VIBRA CHISEL, 31-1/2 FOOT WING, ROCKSHAFT

1

812601C2

SHAFT

ROCKSHAFT ASSY, main frame

1шт.

2

810179C1

CLAMP

rockshaft

4шт.

NLS

NO LONGER SERVICED

BOLT, 5/8 x 1-3/4 type 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

3

810175C1

SUPPORT

ASSY, rockshaft

4шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8 x 3-1/2 type 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

4

19628R91

NIPPLE, LUBE

FITTING, 1/8 pipe thd 45D lub

6шт.
