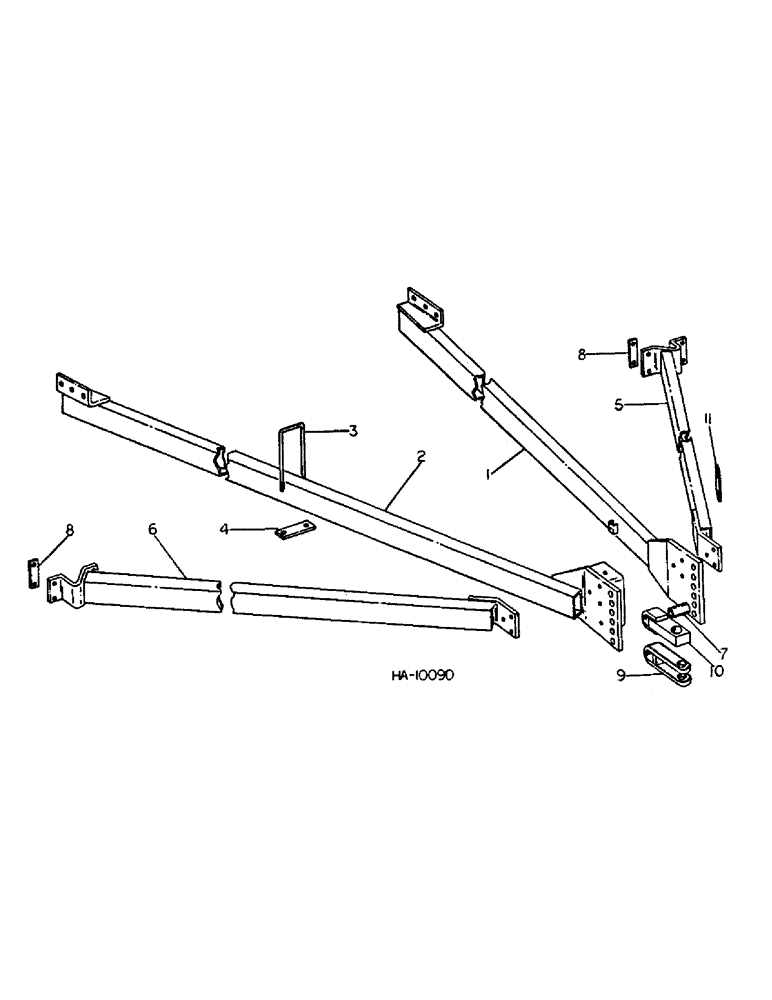

Запчасти Case IH 5000 (H-04) - 5000 VIBRA CHISEL, 31-1/2 FOOT WING, TRACTOR HITCH

1

812584C1

BEAM ASSY, hitch LH

1шт.

2

812585C1

BEAM ASSY, hitch RH

1шт.

271728

SHAFT,Hex, 5/8" - 11 x 3 1/4", Gr 5

5/8 x 3-1/4 type 5

6шт.

273312

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

5/8 x 5-1/2 type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

7шт.

3

812660C1

BOLT,5/8" - 11 x 12.3"

U-BOLT, hitch beam

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

812662C1

BAR

u-bolt

2шт.

5

812636C1

TUBE,111.17" Length

ASSY, hitch brace LH

1шт.

6

812637C1

TUBE,111.17" Length

ASSY, hitch brace RH

1шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

5/8 x 5 type 5

8шт.

21275R1

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 5

5/8 x 6-1/2 type 5

3шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

11шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

7

597326R1

SPACER

hitch clevis

1шт.

8

813064C1

BAR

clamping

4шт.

9

597324R1

CLEVIS

ASSY, hitch, regular

1шт.

10

605866R91

TOW BAR

TONGUE-TYPE hitch assy, for use w/crawler tractors or four wheel drive tractors

1шт.

608501R2

BOLT,Hex, 1" - 8 x 5 1/2", Drilled

1-8 x 5-1/2 hex-hd DLD

1шт.

427649

SLOTTED NUT,1"-8, G5

NUT, 1 slt type 5

1шт.

614451R1

WASHER

1.031 x 1.750 x .105

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

11

813064C1

BAR

clamping, for connecting spare tire

1шт.

20546R1

SCREW,Hex, 1/2"-13 x 6", G5

BOLT, 1/2 x 6 type 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.
