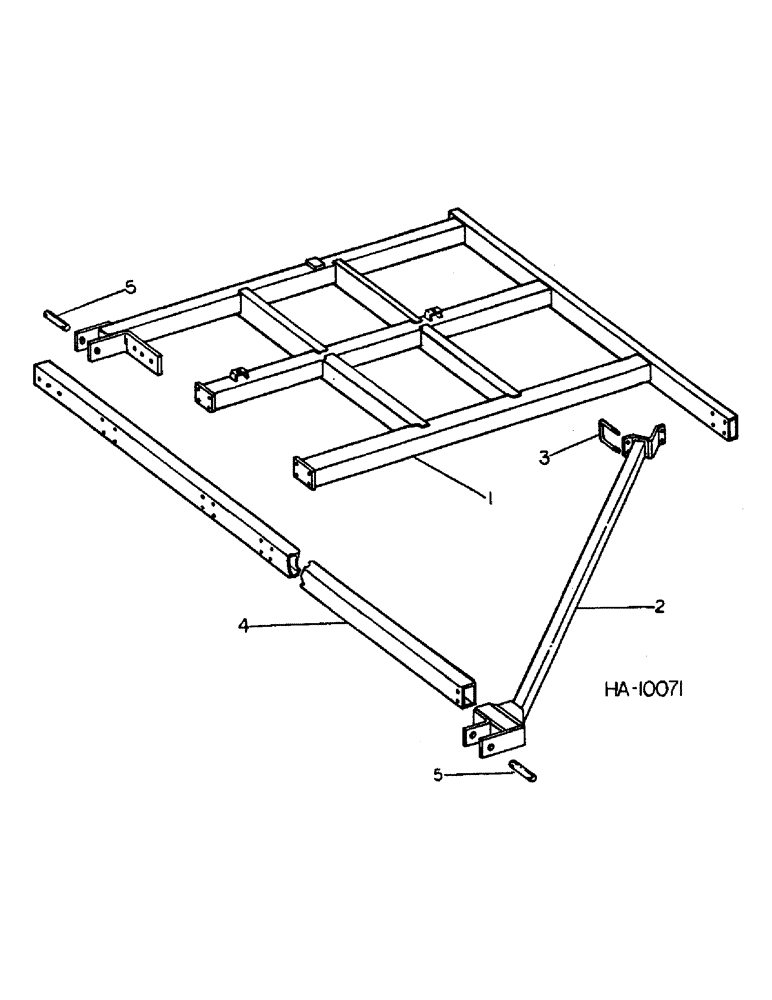

Запчасти Case IH 5000 (H-03) - 5000 VIBRA CHISEL, 31-1/2 FOOT WING, WING FRAME

1

812609C1

FRAME ASSY, wing

2шт.

2

812625C1

TUBE

ASSY, wing frame brace

2шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1/2 x 3-1/4 type 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

3

812659C1

BOLT,5/8" - 11 x 4.4"

U-BOLT, brace tube

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

4

813126C2

TUBE

ASSY, hinge beam

2шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

5/8 x 4 type 5

4шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8 x 3-1/2 type 5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

6шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

16шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.

5

812633C1

PIN

wing frame hinge

4шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

8шт.
