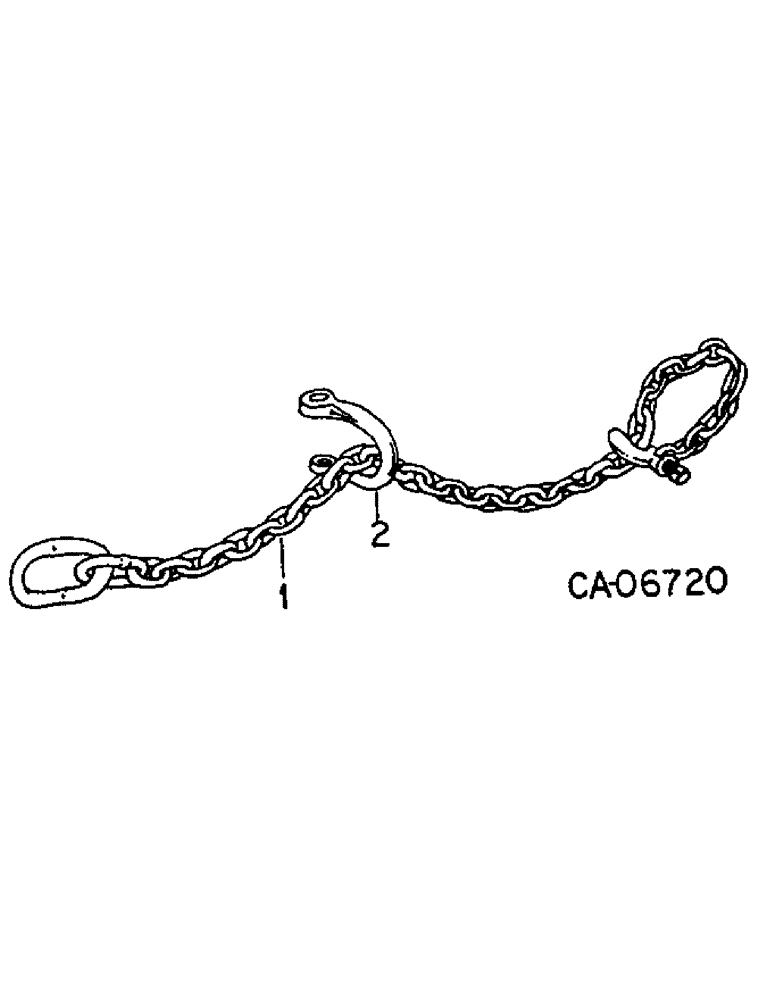

Запчасти Case IH 5000 (G-10) - 5000 VIBRA CHISEL, TRAIL BEHIND, SAFETY CHAIN EQUIPMENT

1

100682C2

CHAIN (AG)

CHAIN, 10,000 lbs safety

1шт.

2

S9173A

CLEVIS

1шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8 x 3-1/2 type 5

1шт.

19508R1

LOCK NUT,5/8"-11, GB

NUT, 5/8 pln P/T lock type 5

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

26512R1

WASHER

.781 x 2.000 x .164

1шт.

18444R1

NUT,3/4"-10, GB

3/4 pln P/T lock type 5

1шт.

61913C92

PACKAGE

chain hardware, consists of ref no. 2 and attaching hardware

1шт.

2154170C1

PRODUCT GRAPHIC, general caution

1шт.

812502C1

PRODUCT GRAPHIC, model designation

1шт.

175311C1

REFLECTOR

safety red

2шт.

174732C1

REFLECTOR

safety amber

1шт.

810170C2

PRODUCT GRAPHIC

warning wing frame

2шт.

77583C91

PACKAGE

IH trademark, large size, consists of (2) IH trademark 6.58 x 7.09 (NSS), (2) IH trademark 7.68 x 8.27 (NSS), (2) IH trademark 10.24 x 11.02 (NSS)

1шт.

77582C91

PACKAGE

IH trademark, medium size, consists of (2) IH trademark 3.66 x 3.94 (NSS), (2) IH trademark 4.39 x 4.72 (NSS), (2) IH trademark 5.48 x 5.91 (NSS)

1шт.

77581C91

PRODUCT GRAPHIC

PACKAGE, trademark, small size, consists of (2) IH trademark 1.46 x 1.57 (NSS), (2) IH trademark 2.19 x 2.36 (NSS), (2) IH trademark 2.93 x 3.15 (NSS)

1шт.

547495R92

DECAL KIT

PACKAGE, International, for red machines, consists of (2) International 8.56 x .56 (NSS), (2) International 14.06 x .94 (NSS), (2) International 23.12 x 1.50 (NSS), (2) International 35.12 x 2.25 (NSS)

1шт.

547497R92

DECAL

PACKAGE, model designation, for red machines, consists of (2) model designation 8.78 x 2.45 (NSS), (2) model designation 14.08 x 4.50 (NSS), (2) model designation 20.04 x 7.57 (NSS), (2) model designation 15.20 x 7.56 (NSS)

1шт.
