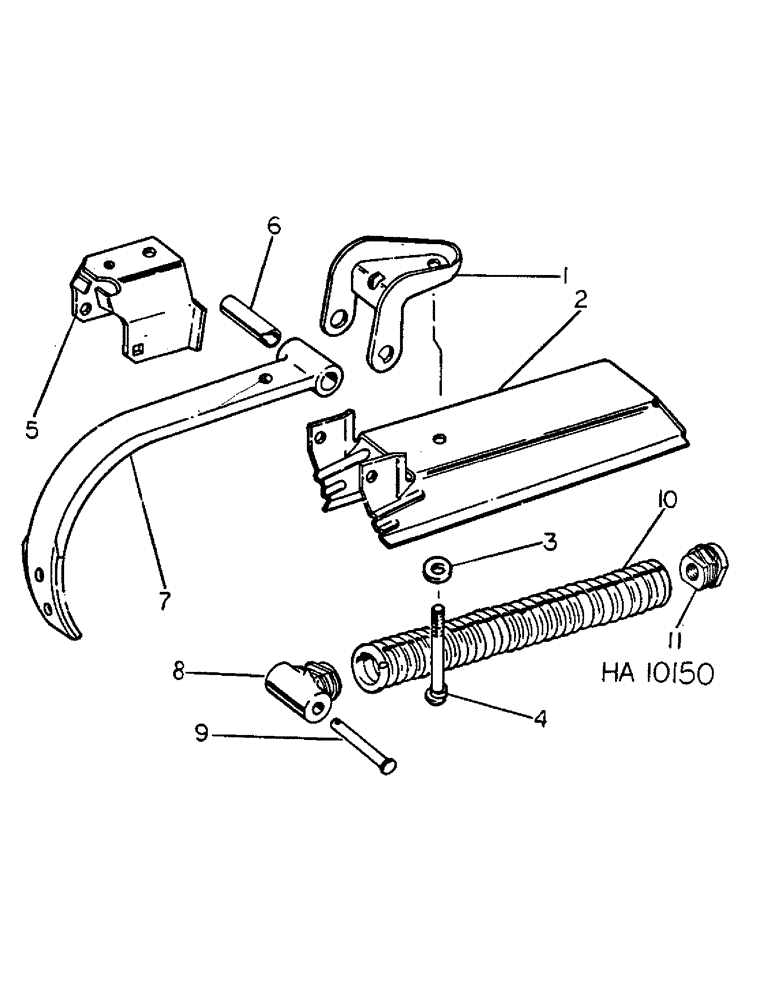

Запчасти Case IH 5000 (A-2) - GROUND WORKING TOOLS AND SHANKS, VIBRA SHANK, BUILT 1970 SEASON TO 1976 SEASON

1

811336C1

CLAMP

shank top

1шт.

2

811333C1

SUPPORT

shank

1шт.

3

21905R1

WASHER

.656 x 1.750 x .224

1шт.

4

811340C3

BOLT,1/2" - 13 x 5 1/2"

shank support

1шт.

597670R1

NUT

1/2-13 hex-lock

1шт.

21375R1

WASHER

.531 x 1.250 x .179

1шт.

5

811334C1

CLAMP

shank

1шт.

6

811339C1

BUSHING

clamp

1шт.

812199C1

BOLT,Hex, 5/8" - 11 x 4"

5/8-11 x 4 hex-hd

1шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex lock

1шт.

138502

WASHER,Ext Tooth, 5/8"

5/8 ext tooth lock

2шт.

7

811335C1

SHANK

vibra

1шт.

NLS

NO LONGER SERVICED

BOLT, 5/8-11 x 1-3/4 hex-hd

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

8

811337C1

PLUG

spring rear

1шт.

9

811390C2

PIN,16.31mm OD x 103.99mm L

spring plug

1шт.

21782R1

WASHER

.656 x 1.500 x .054

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

10

811342C1

SPRING

shank return

1шт.

11

811338C1

PLUG

spring front

1шт.

812199C1

BOLT,Hex, 5/8" - 11 x 4"

5/8-11 x 4 hex-hd

1шт.

589068R1

WASHER

.656 x 1.250 x .105

1шт.
