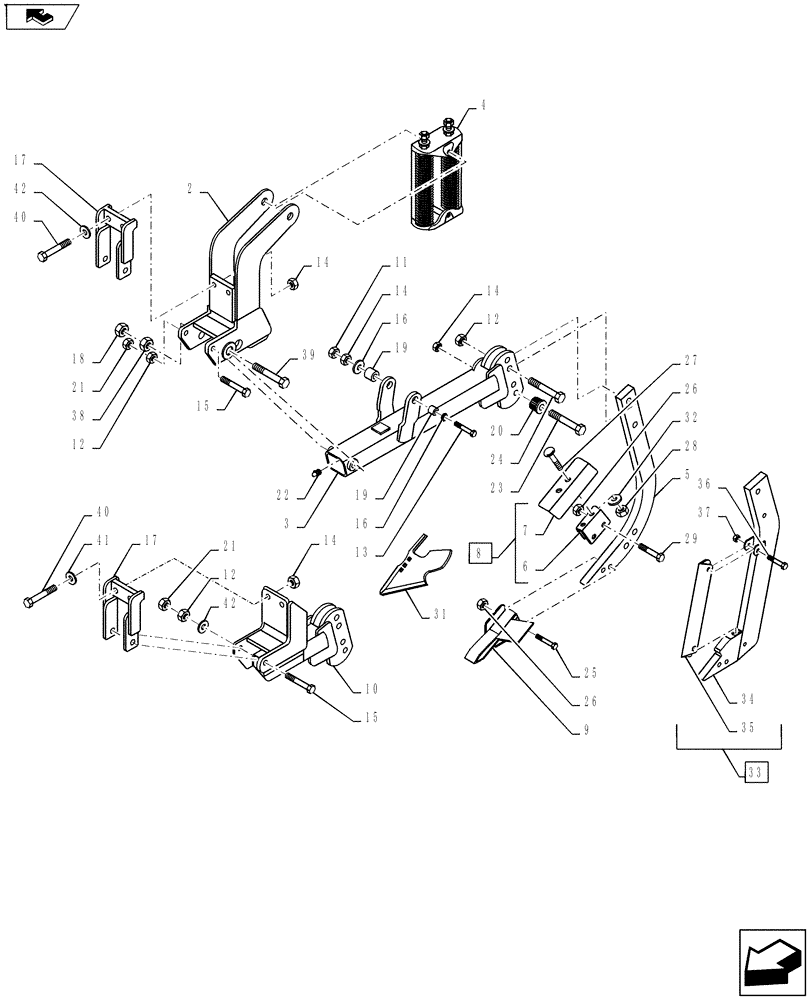

Запчасти Case IH 500 (75.200.01) - PARABOLIC SHANK ASSY (75) - SOIL PREPARATION

1

09651507

SHANK

Quad S/R-12 Assembly Less Shank (Not Shown)

1шт.

2

09651410

MOUNTING PARTS

S/R-12

1шт.

3

09651420

SHANK

S/R-12 Pivot Beam

1шт.

4

09651430

COIL SPRING

S/R-12 Assy.

1шт.

5

33020040

SHANK

Parabolic

1шт.

6

09580700

BRACKET

Parabolic Cover Attachment

1шт.

7

33310076

LANDSIDE

Parabolic 4" Covering Point w/Hardware

1шт.

8

09580060

BRACKET

Parabolic 4" Covering Attachment and Hardware, Includes Ref. 5-6

1шт.

9

09729002

POINT

7" Q/P Tiger, Other Points Available

1шт.

9

09729000

POINT

2" Parabolic Assy.

1шт.

9

09729001

POINT

5" Parabolic Assy.

1шт.

10

09651505

MOUNTING PARTS

Parabolic beam

1шт.

11

NSS

NOT SOLD SEPARAT

5/8" NC Hex Jam Nut

2шт.

12

NSS

NOT SOLD SEPARAT

3/4" NC Hex Nut

2шт.

13

16901025

CAPSCREW,Hex, 5/8" - 11 x 7 1/2", Spcl, Gr 5

5/8" x 7-1/2" NC, Hex., Gd. 5

2шт.

14

NSS

NOT SOLD SEPARAT

5/8" NC Hex Nut

5шт.

15

16901235

CAPSCREW,Hex, 3/4" - 10 x 7 1/2", Gr 5

3/4" x 7-1 /2" NC Hex., Gd.5

1шт.

16

NSS

NOT SOLD SEPARAT

5/8" Std. Washer Z.P.

4шт.

17

09651440

MOUNTING CLIP

1шт.

18

NSS

NOT SOLD SEPARAT

7/8" NC Hex Jam Nut

1шт.

19

44006201

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

H.T.

4шт.

20

44006510

BUSHING

Serrated H.T.

2шт.

21

NSS

NOT SOLD SEPARAT

3/4" NC Hex Jam Nut

1шт.

22

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Zerk

1шт.

23

16010165

BOLT

5/8" x 4" NC Hex., Gd. 5

1шт.

24

16901215

BOLT

3/4" x 3-3/4" A325 Hex., Gd. 5

1шт.

25

NSS

NOT SOLD SEPARAT

1/2" x 2-1 /4" NC Hex Bolt Gd. 5

1шт.

26

NSS

NOT SOLD SEPARAT

1/2" NC Hex Nut

3шт.

27

16207051

PLOW BOLT

7/16" x 1-1/4"

2шт.

28

NSS

NOT SOLD SEPARAT

7/16" NC Hex Nut

2шт.

29

NSS

NOT SOLD SEPARAT

1/2" x 2-1/2" NC Hex Bolt Gd. 5

2шт.

31

33310081

LANDSIDE

6" Covering Point W/Hardware

1шт.

30

09650060

PLOW

6" Covering Attachment, Inc. 6 and 40

1шт.

32

NSS

NOT SOLD SEPARAT

7/16" Lock Washer

2шт.

33

09581705

SHANK

MRD Assy., Includes Ref. 32-35

1шт.

34

09581750

SHANK

MRD

1шт.

35

09581760

WEDGE

MRD Shin

1шт.

36

NSS

NOT SOLD SEPARAT

1/2" x 2-1/2" NC HHCS Gd. 2

1шт.

37

NSS

NOT SOLD SEPARAT

1/2" NC Hex Lock Nut Gd. 5

1шт.

38

NSS

NOT SOLD SEPARAT

7/8" NC Hex Nut

1шт.

39

16901435

BOLT

7/8" x 7-3/4" NC Hex., Gd. 5

1шт.

40

16010285

BOLT

5/8" x 7" NC Hex., Gd. 5

2шт.

41

17411012

WASHER

5/8"

2шт.

42

17413011

WASHER

3/4"

1шт.
