(55.404.01) - WARNING AND TAIL LIGHT KIT

Запчасти Case IH 500 (55.404.01) - WARNING AND TAIL LIGHT KIT (55) - ELECTRICAL SYSTEMS

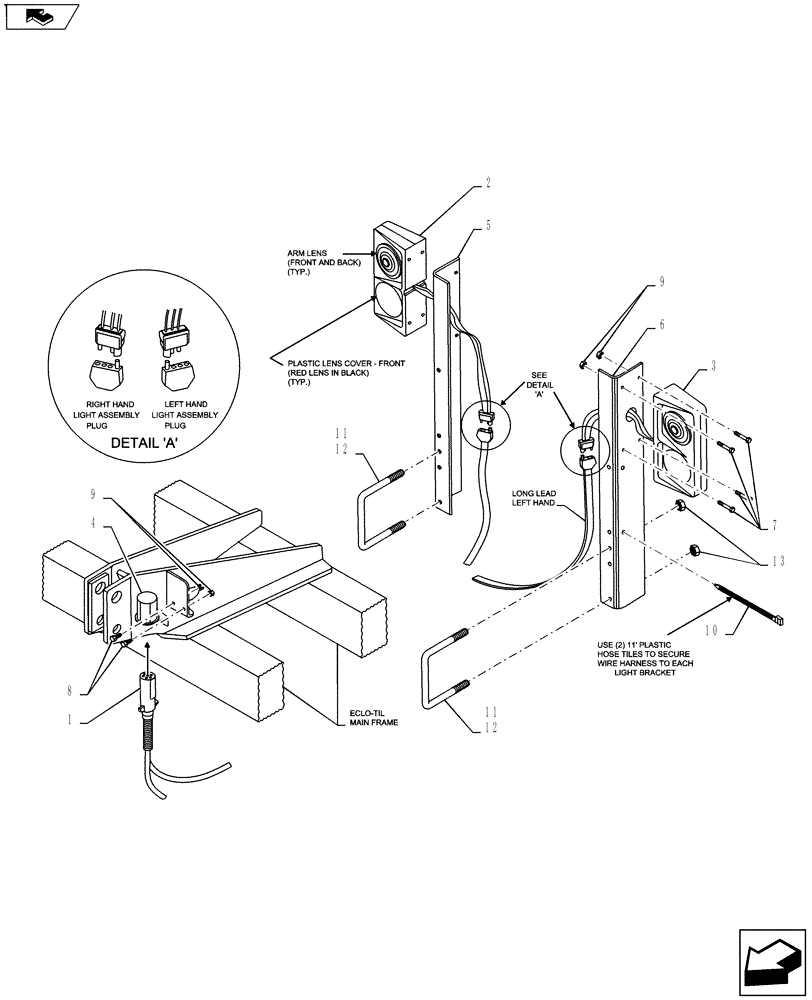

Схема запчастей Case IH 500 - (55.404.01) - WARNING AND TAIL LIGHT KIT (55) - ELECTRICAL SYSTEMS
6
13
11
3
5
10
11
8
4
12
2
1
home
9
9
7
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87446777

WIRE HARNESS

1шт.

2

84337526

LAMP

Fixture, RH.

1шт.

3

84337527

LAMP

Fixture, LH.

1шт.

4

27601214

HOLDER

Plug Storage Container

1шт.

5

27601201

SHEET

Light Bracket, RH.

1шт.

6

27601202

SHEET

Light Bracket, LH.

1шт.

7

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

8шт.

8

NSS

NOT SOLD SEPARAT

1/4" x 3/4" NC Hex Bolt

2шт.

9

NSS

NOT SOLD SEPARAT

1/4" NC Hex Lock Nut

10шт.

10

NSS

NOT SOLD SEPARAT

11" Plastic Hose Tie

1шт.

11

16309101

U-BOLT,3/8" - 16, Square, 4" W x 6" L

BOLT "U" 3/8" x 4" x 6"

2шт.

12

16309091

U-BOLT,3/8" - 16, Square, 4" W x 5" L

BOLT "U" 3/8" x 4" x 4" (Used With Leveler Attachment)

2шт.

13

NSS

NOT SOLD SEPARAT

3/8" NC Hex Lock Nuts

4шт.
