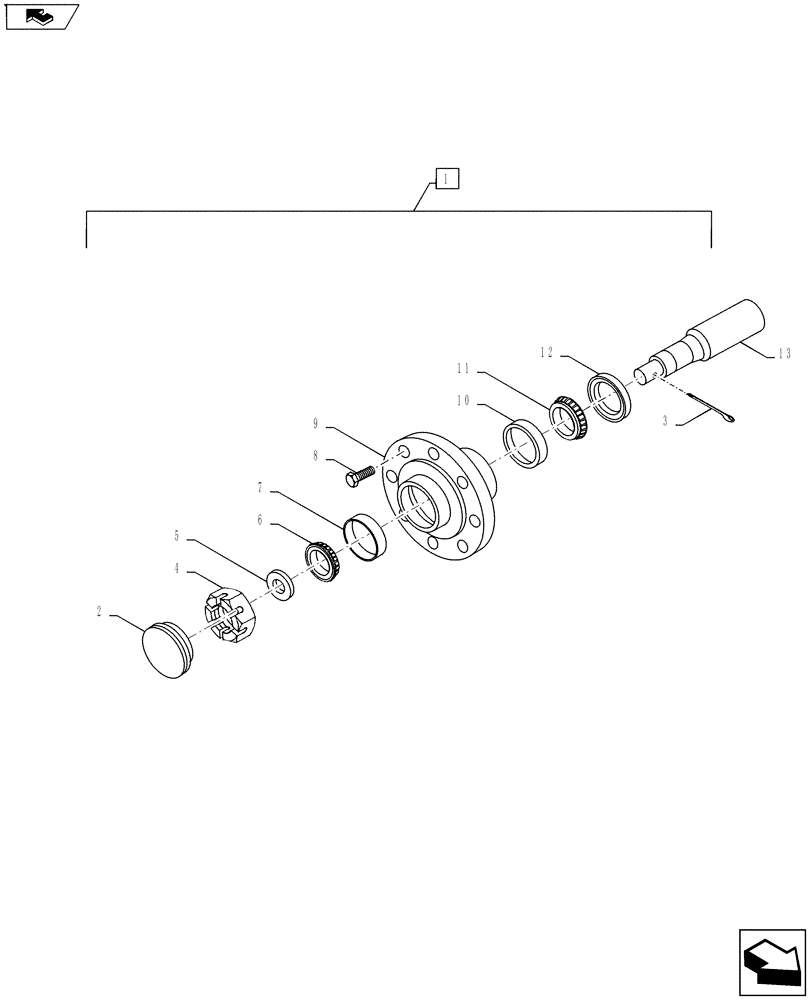

Запчасти Case IH 500 (44.100.02) - 709 HUB & SPINDLE ASSY (44) - WHEELS

1

28170900

HUB ASSY.

Q-709 6-Bolt, Includes Ref. 2-12

1шт.

2

28477700

HUB CAP

1шт.

3

NSS

NOT SOLD SEPARAT

5/32" x 1-1/2" Cotter Pin

1шт.

4

NSS

NOT SOLD SEPARAT

7/8" NF Slotted Nut

1шт.

5

17014002

WASHER

7/8" Special

1шт.

6

21871250

ROLLER BEARING,31.77 mm ID x 16.76 mm

1.25" Bore Timken LM 67048

1шт.

7

21882330

BEARING, CUP,31.77 mm ID x 59.15 mm OD x 16.08 mm

2.33" OD Cut Timken LM 67010

1шт.

8

16408053

SPECIAL BOLT

1/2" NF x 1-15/32" Lug

6шт.

9

NSS

NOT SOLD SEPARAT

Hub

1шт.

10

21882560

BEARING, CUP

2.56" OD Timken LM 48510

1шт.

11

21871380

BEARING CONE

1.38" Bore Timken LM 48548

1шт.

12

21931500

OIL SEAL

1.50" ID x 2.62" OD, CR I51 90

1шт.

13

28370931

SPINDLE

13"

1шт.

14

28070931

HUB ASSY.

Plus Spindle, 11 - 3/8", Not Shown

1шт.
