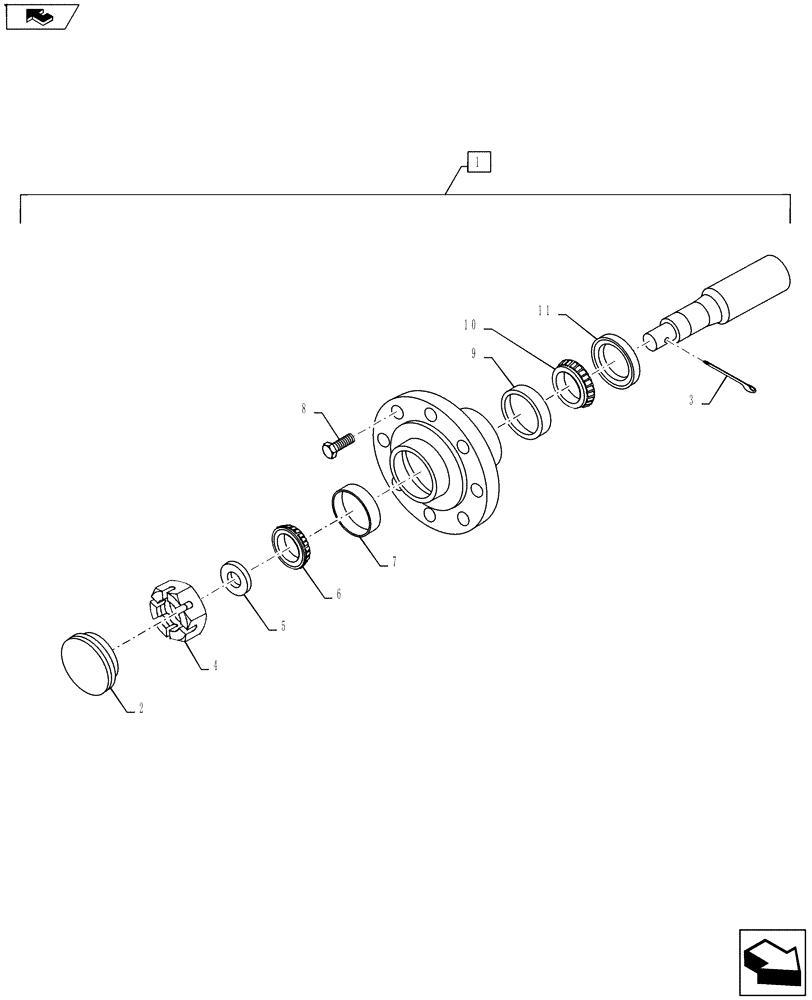

Запчасти Case IH 500 (44.100.01) - 633 HUB & SPINDLE ASSY (44) - WHEELS

1

28163300

HUB ASSY.

633 4-Bolt W/Tapered Lug Bolts, Includes Ref 2-11

1шт.

1

28163310

HUB ASSY.

633 4-Bolt W/Flat Heat Bolts, Includes Ref. 2-11

1шт.

2

28463300

HUB CAP

1шт.

3

NSS

NOT SOLD SEPARAT

5/32" x 1-1/2" Cotter Pin

1шт.

4

NSS

NOT SOLD SEPARAT

3/4" NF Slotted Nut

1шт.

5

NSS

NOT SOLD SEPARAT

3/4" SAE Washer

1шт.

6

21870750

BEARING CONE

0.75" Bore Timken LM11949

1шт.

7

21881780

BEARING CUP

1.78" OD Timken LM11910

1шт.

8

16408053

SPECIAL BOLT

1/2" x 1" NF Tapered Lug

4шт.

8

S0000210

BOLT

1/2" x 1-1/4" NF Flat Head

4шт.

9

21882330

BEARING, CUP,31.77 mm ID x 59.15 mm OD x 16.08 mm

2.33" OD Timken LM67010

1шт.

10

21871250

ROLLER BEARING,31.77 mm ID x 16.76 mm

1.25" Bore Timken LM67048

1шт.

11

21931501

SEAL ASSY.

1.50" ID x 2.33" OD, CR14975

1шт.

12

28063321

HUB ASSY.

Plus Spindle, 6 - 1/4", w/Flat Head Bolts, Not Shown

1шт.
