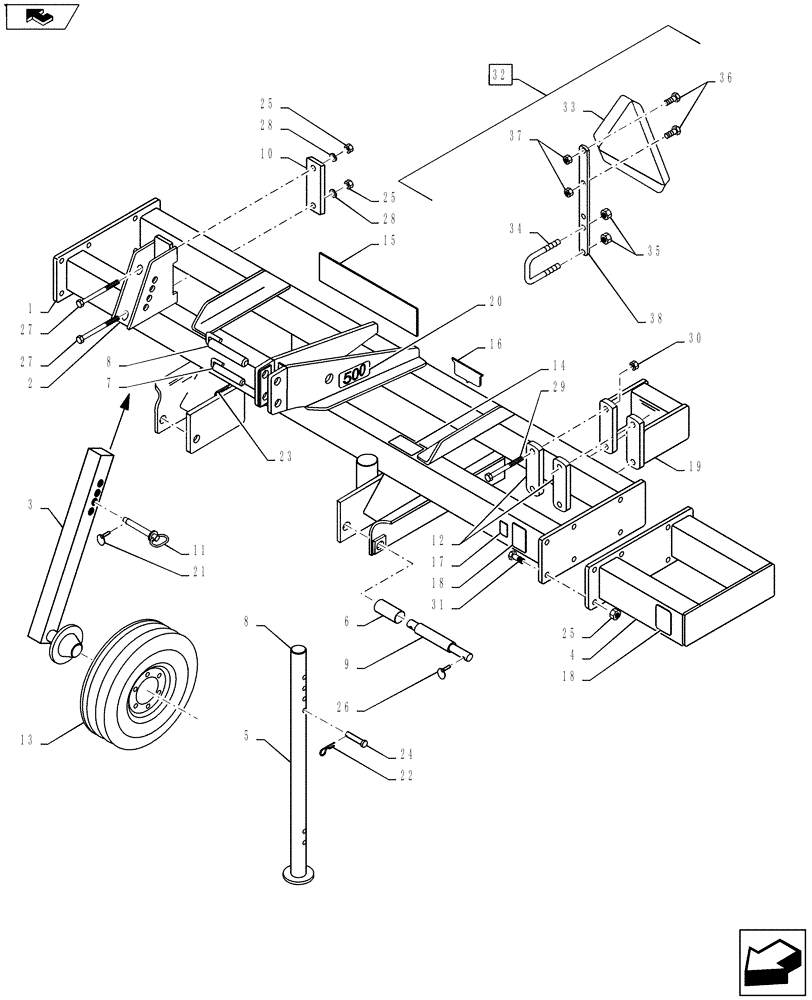

Запчасти Case IH 500 (39.100.01) - MAIN FRAME ASSY (39) - FRAMES AND BALLASTING
№
Артикул
Название
Примечание
Количество
1
02381100
FRAME
3-Shank Main
1шт.
1
02381500
FRAME
5-Shank Main
1шт.
2
02381300
BRACKET
Gauge Wheel Mounting
2шт.
2
04661320
GAUGE
Wheel Mounting Bracket
1шт.
3
02381400
BAR ASSY.
Spindle Weld
2шт.
4
02380200
FRAME
Ecolo-Til Wing, 7 Shank, 38" Spacing
2шт.
4
02380250
BAR ASSY.
Ecolo-Til Wing, 7 Shank, 30" Spacing
2шт.
5
02350500
STAND
Parking
1шт.
6
02305000
SPACER
Hitch Pin
2шт.
7
14816395
CLEVIS
1" x 4-7/8" E.L. Pin
1шт.
8
14820358
CLEVIS
1-1/4" Dia. Pin
1шт.
9
14892360
SPECIAL PIN,36.53mm OD x 322.07mm L
Comb. 3 Pt. Painted
2шт.
10
02380115
CONNECTING LINK
Flat
2шт.
11
14816348
PIN,25.4mm OD x 133.35mm L
Weldment
2шт.
12
09576610
LINKAGE
Flat
1шт.
13
10008160
WHEEL ASSY.
20.5 x 8 Tire & Wheel
2шт.
14
18534231
DECAL
Caution
1шт.
15
18534230
DECAL
Ecolo-Til
1шт.
16
18534259
DECAL
DMI
1шт.
17
18534203
DECAL
Fema
1шт.
18
18534243
REFLECTOR
Amber
1шт.
19
09576750
BAR
Parabolic
1шт.
20
18534271
DECAL
500
1шт.
21
14710814
SMALL PIN
Klik
2шт.
22
NSS
NOT SOLD SEPARAT
1/8" x 2" Hair Pin Z.P.
1шт.
23
NSS
NOT SOLD SEPARAT
3/16" x 3" Hair Pin Z.P.
2шт.
24
14810251
HEADED PIN,15.88mm OD x 96.77mm L
5/8" x 3-1/8 E.L. x 3-1/2"
1шт.
25
NSS
NOT SOLD SEPARAT
3/4" NC Hex Nut Gd. 2
16шт.
26
14710815
PIN, LOCKING
1/4" Dia. x 1-3/4" Klik
2шт.
27
NSS
NOT SOLD SEPARAT
3/4" x 6-1/2" NC Hex Bolt Gd. 5
4шт.
28
NSS
NOT SOLD SEPARAT
3/4" Lock Washer Z.P.
1шт.
29
NSS
NOT SOLD SEPARAT
3/4" x 6" NC Hex Bolt Gd. 5
1шт.
30
NSS
NOT SOLD SEPARAT
3/4" NC Hex Nut
1шт.
31
NSS
NOT SOLD SEPARAT
3/4" x 2-1/2" NC HHCS Gd.5
12шт.
32
18584000
WARNING SIGN
SMV Kit, Includes Ref. 33-37
1шт.
33
311860A1
EMBLEM
SMV Bracket
1шт.
34
16309091
U-BOLT,3/8" - 16, Square, 4" W x 5" L
BOLT "U" 3/8" x 4" x 4" U-Bolt
1шт.
35
86992213
NUT
3/8" NC Hex Lock Nut
2шт.
36
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
2шт.
37
86992211
NUT
1/4" NC Hex Lock Nut
2шт.
38
06000099
BRACE
1шт.
Выбрано товаров: 41
