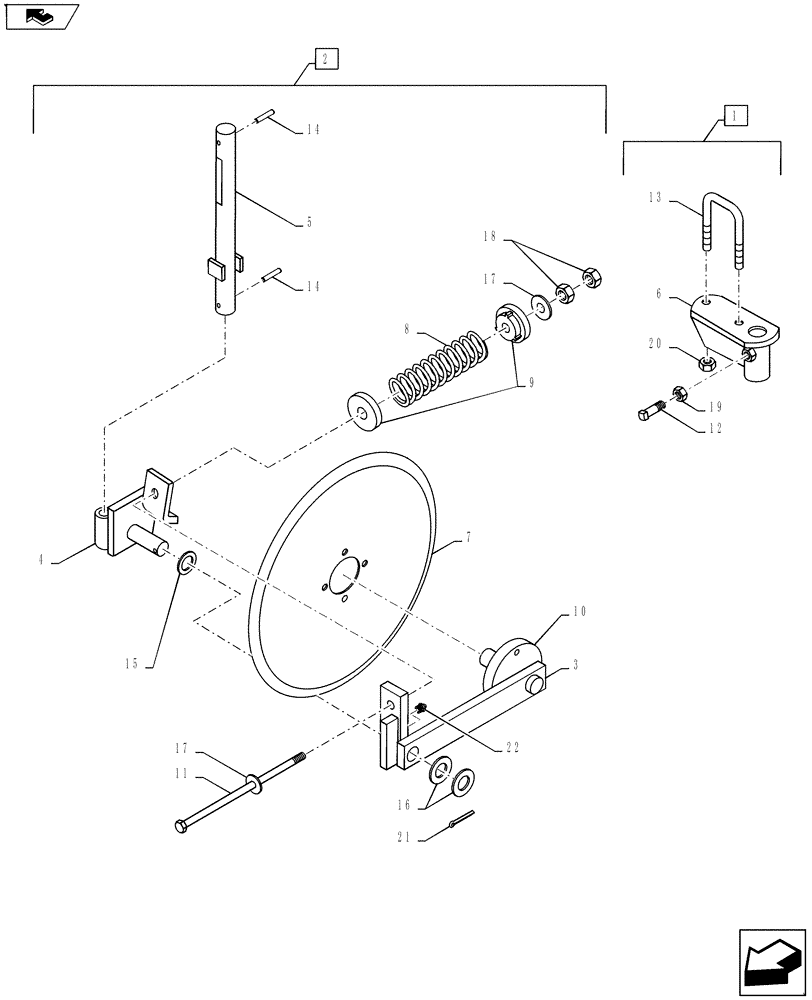

Запчасти Case IH 500 (75.200.02) - 20" SPRING COLTER ASSY (75) - SOIL PREPARATION

1

04663400

BAR ASSY.

Standard Mount w/Hardware - 20" Colter, Includes Ref. 6, 12-13, 19-20

1шт.

2

04663000

BAR ASSY.

20" Colter Arm, Includes Ref. 3, 5, 7-11, 14-18, 21-22

1шт.

ITEMS W/1-1/2" SHAFT FOR UNITS PRIOR TO 1993

1шт.

3

04663100

BAR ASSY.

Colter Arm 20" (1-3/4" Shaft)

1шт.

3

02365015

20" w/Hub (1-1/2" Shaft)

1шт.

4

04663200

BAR ASSY.

Colter Pivot (1-3/4" Shaft)

1шт.

4

02365019

BAR ASSY.

Colter Pivot (1-1/2" Shaft)

1шт.

5

04663150

BAR ASSY.

Colter Shaft 20" (1-3/4" Shaft)

1шт.

5

02365024

BAR ASSY.

Colter Shaft 20" (1-1/2" Shaft)

1шт.

6

04663410

BAR ASSY.

Standard Mount (1-3/4" Shaft)

1шт.

6

02365028

BAR ASSY.

Standard Mount (1-1/2" Shaft)

1шт.

7

443626A1

PLOW DISC

20" Colter Blade

1шт.

8

24143880

COMPRESSION SPRING

20" Colter

1шт.

9

20090050

HOLDER

Spring Casting

2шт.

10

28063321

HUB ASSY.

633, Spindle

1шт.

10

28163310

HUB ASSY.

633 4-Bolt

1шт.

11

16010140

5/8" x 11" NC Hex. Bolt - 20" Colter

1шт.

12

16812084

SET SCREW,3/4" - 10 x 2"

3/4" x 2" NC Sq. Heavy Duty

1шт.

13

16312020

U-BOLT

BOLT "U" 3/4" x 4" x 7-1/2"

2шт.

14

14741412

ROLL PIN

7/16" x 2-1/2"

2шт.

15

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4" Machine 10 Ga.

1шт.

16

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4" Machine 14 Ga.

2шт.

17

17411012

WASHER

5/8" x 1/4" Thick

2шт.

18

NSS

NOT SOLD SEPARAT

5/8" NC Jam Nut

2шт.

19

NSS

NOT SOLD SEPARAT

3/4" NC Jam Nut

1шт.

20

NSS

NOT SOLD SEPARAT

3/4" NC Hex Nut

4шт.

21

NSS

NOT SOLD SEPARAT

1/4" x 1-1/2" Cotter Pin

1шт.

22

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Zerk

1шт.
