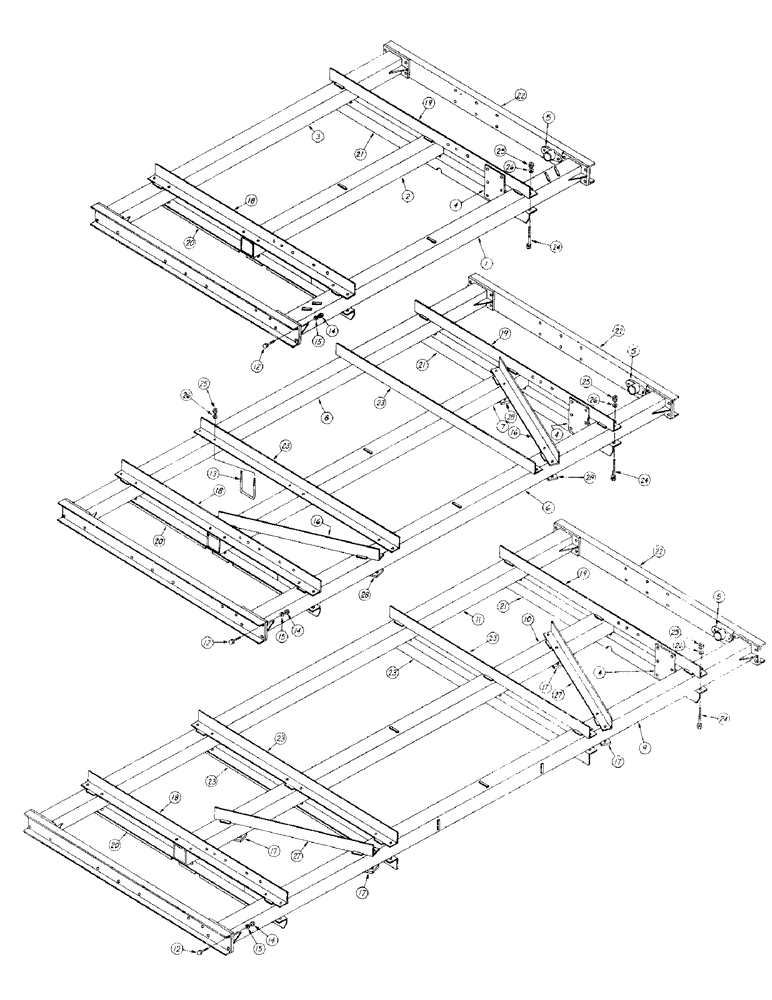

Запчасти Case IH 400-SERIES (20) - BASIC FRAME, CHANNEL BRACE AND CROSS ANGLES

1

T52989

FRONT FRAME MEMBER - 7 ft.

1шт.

2

T52990

REAR FRAME MEMBER - 7 ft.

1шт.

3

T52991

CENTER FRAME MEMBER - 7 ft.

1шт.

4

T52992

BEARING PLATE

2шт.

5

T1934

BEARING

axle

4шт.

6

T52993

FRONT FRAME MEMBER - 10 ft.

1шт.

7

T52994

REAR FRAME MEMBER - 10 ft.

1шт.

8

T52995

CENTER FRAME MEMBER - 10 ft.

1шт.

9

T52996

FRONT FRAME MEMBER - 13 ft.

1шт.

10

T52997

REAR FRAME MEMBER - 13 ft.

1шт.

11

T52998

CENTER FRAME MEMBER - 13 ft.

1шт.

12

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

32шт.

13

T51888

U-BOLT

5/8

6шт.

14

129-105

NUT,Hex, 1/2" - 13, Gr 5

32шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

32шт.

16

T53013

CROSS ANGLE

2шт.

17

T53014

BRACKET

4шт.

18

T52999

FRAME CROSS ANGLE - upper - R.H.

1шт.

19

T53000

FRAME CROSS ANGLE - upper - L.H.

1шт.

20

T53001

FRAME CROSS ANGLE - lower - R.H.

1шт.

21

T53002

FRAME CROSS ANGLE - lower - L.H.

1шт.

22

T53003

CHANNEL BRACE

2шт.

23

T53004

FRAME CROSS ANGLE

6шт.

24

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

40шт.

25

129-107

NUT,5/8"-11, G5

52шт.

26

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

52шт.

27

T53011

CROSS ANGLE

2шт.

28

T53012

BRACKET

4шт.
