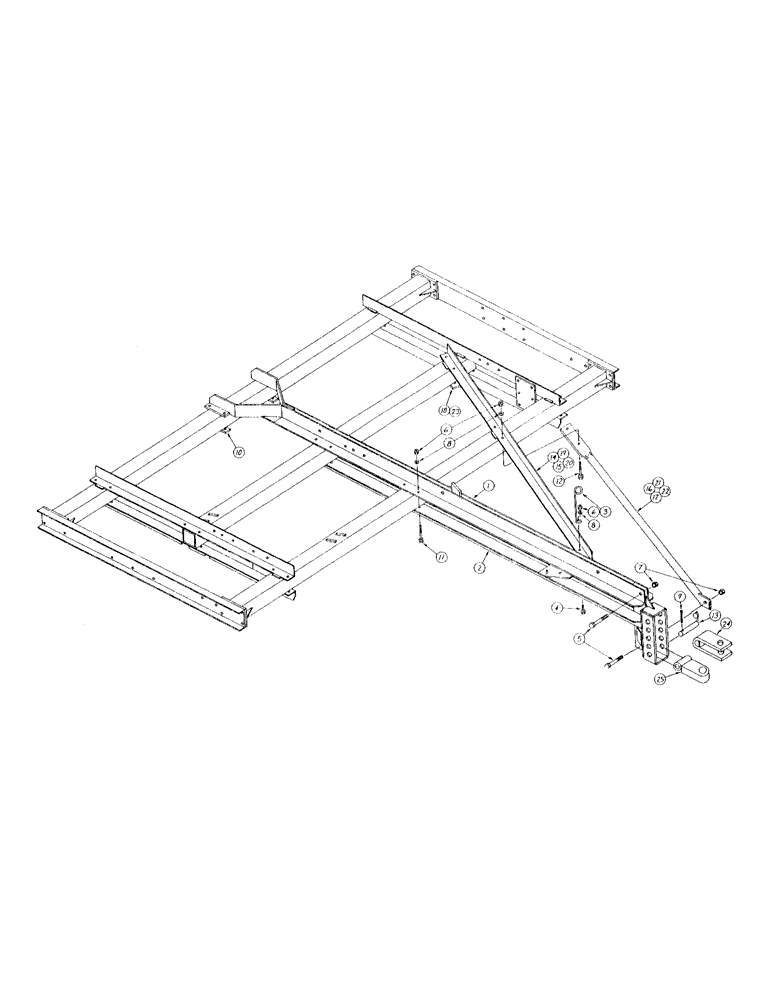

Запчасти Case IH 400-SERIES (16) - POLE AND POLE BRACES

1

T53421

POLE H.D.

1шт.

2

T53422

POLE LOWER

1шт.

3

T35693

CARRIER, hose

1шт.

4

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

5

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

SCREW, hx. hd. cap, 3/4 x 2-1/2, gr. 8

3шт.

6

129-107

NUT,5/8"-11, G5

25шт.

7

131-1131

LOCK NUT,3/4"-10, GA

NUT, hx. top lock, 3/4

3шт.

8

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

24шт.

9

132-314

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

1шт.

10

T53030

BRACKET

2шт.

11

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

16шт.

12

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

SCREW, hx. hd. cap, 5/8 x 6

4шт.

13

T37941

PIN

CLEVIS

1шт.

14

T53413

POLE BRACE - R.H. - med. 90"

1шт.

15

T53414

POLE BRACE - L.H. - med. 90"

1шт.

16

T53415

BRACE - R.H., 76-7/8"

1шт.

17

T53416

BRACE - L.H., 76-7/8"

1шт.

18

T53012

BRACKET

2шт.

19

T53417

POLE BRACE - R.H. - long, 96-3/4"

1шт.

20

T53418

POLE BRACE - L.H. - long, 96-3/4"

1шт.

21

T53419

BRACE - R.H., 80-5/8"

1шт.

22

T53420

BRACE - L.H., 80-5/8"

1шт.

23

T53014

BRACKET

2шт.

24

T52744

CLEVIS

YOKE CLEVIS

1шт.

25

T28920

BLOCK CLEVIS

1шт.
