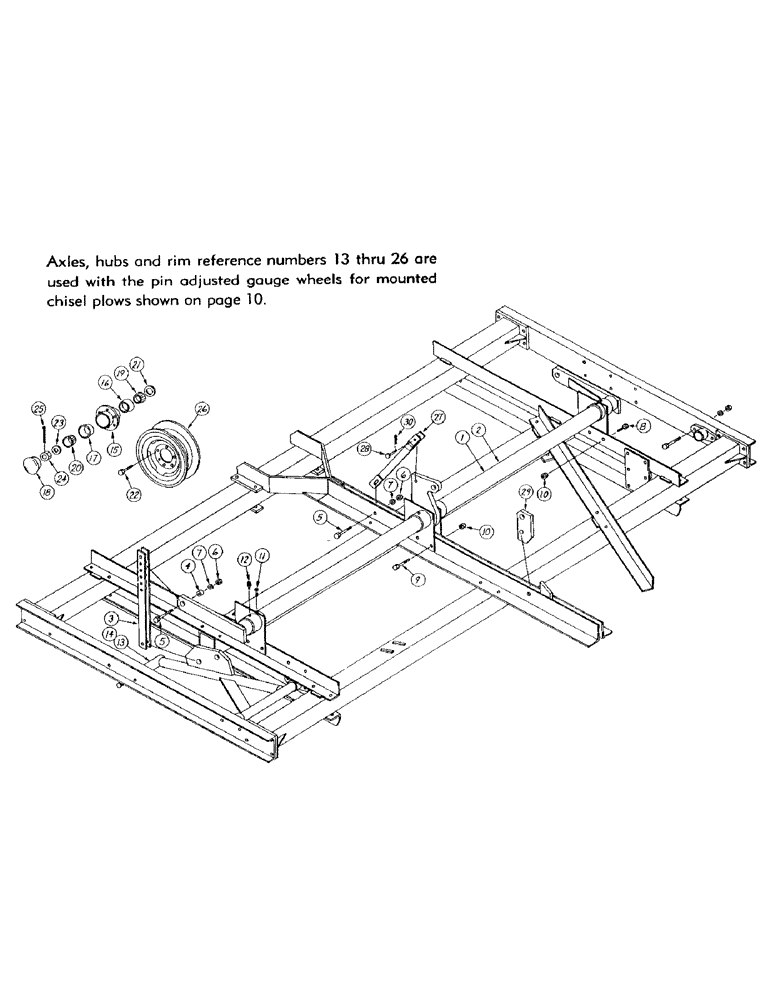

Запчасти Case IH 400-SERIES (14) - RAISING SHAFT

1

T53410

SHAFT, raising - short

1шт.

2

T53412

SHAFT, raising - long

1шт.

3

T53411

BAR, lift

4шт.

4

T28975

BUSHING

1" OD. x 27/32 lg.

4шт.

5

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

5шт.

6

129-107

NUT,5/8"-11, G5

5шт.

7

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

8

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

6шт.

9

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, hx. hd. cap, 5/8 x 2-3/4, gr. 8

3шт.

10

230-41110

LOCK NUT,5/8"-11, GA

NUT, hx. top lock, 5/8

9шт.

11

181-805

SET SCREW,Sq Hd, 3/8"-16 x 1/2"

SCREW, set, sq. hd., 3/8 x 1/2

2шт.

12

219-22

LUBE NIPPLE,1/8" - 27 NPTF

ZERK, grease, 1/8

4шт.

13

T53026

AXLE - R.H.

1шт.

14

T53027

AXLE - L.H.

1шт.

15

T52902

HUB

W/CUPS

2шт.

16

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP, bearing - inner

2шт.

17

H751370

BEARING CUP

CUP, bearing - outer

2шт.

18

T23707

CAP

HUB CAP

2шт.

19

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE, bearing - inner

2шт.

20

H747758

TAPERED BEARING,38.1 mm ID x 18.034 mm

CONE, bearing - outer

2шт.

21

T52904

SEAL

GREASE SEAL

2шт.

22

T40045

WHEEL BOLT

LUG BOLT, 1/2

12шт.

23

195-50

WASHER,7/8" x 2" x .165"

special

2шт.

24

25-1314

SLOTTED NUT,7/8"-14, G5

NUT, slotted, 7/8

2шт.

25

132-311

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

2шт.

26

T52743

RIM - 15"

2шт.

27

T50874

BRACKET

transport arm

1шт.

28

T28984

PIN, clevis, 5/8 x 2

1шт.

29

T53423

LUG, cylinder

1шт.

30

136-164

COTTER PIN,Int, 5/16" x .120"

COTTER, hairpin

1шт.
