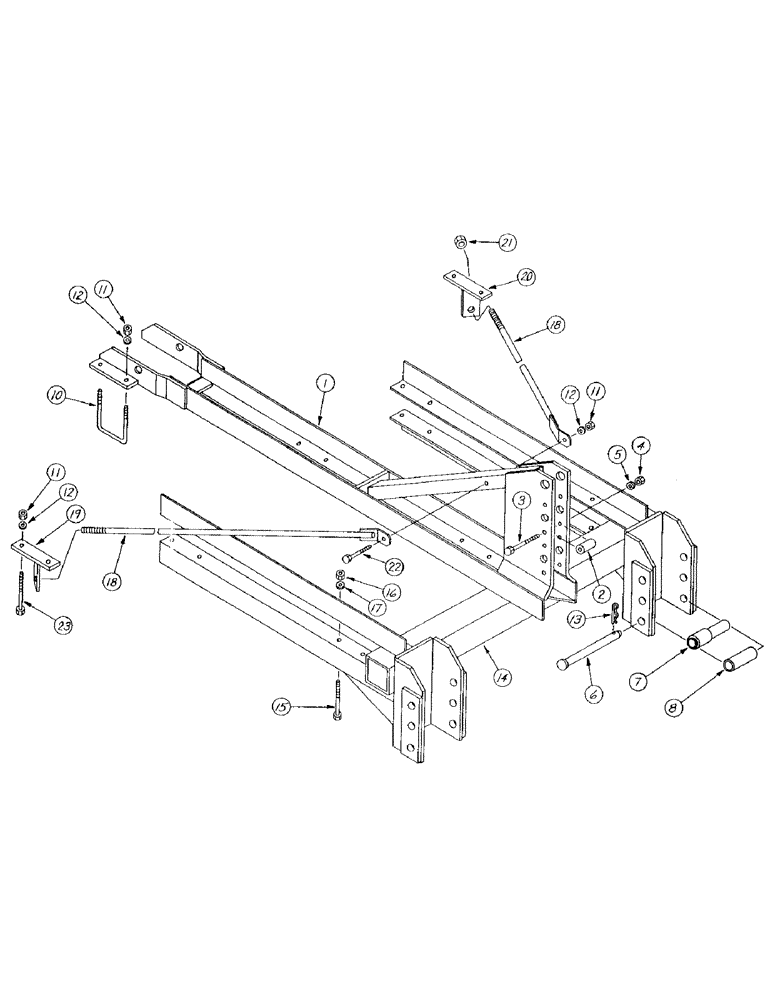

Запчасти Case IH 400-SERIES (08) - CATEGORY II AND III, HITCH AND TRUSS ROD

1

T53031

HITCH MAST

1шт.

2

T30665

BUSHING

1шт.

3

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

SCREW, hx. hd. cap, 5/8 x 4

1шт.

4

129-107

NUT,5/8"-11, G5

1шт.

5

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

6

T52877

CLEVIS PIN

2шт.

7

T52878

CATEGORY III SLEEVE

2шт.

8

T52879

SPACER

2шт.

9

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

SCREW, hx. hd. cap, 5/8 x 4

1шт.

10

T51888

U-BOLT

5/8

8шт.

11

129-107

NUT,5/8"-11, G5

17шт.

12

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

17шт.

13

T50113

PIN

CLINCH PIN

2шт.

14

T53032

HITCH FRAME - lower

1шт.

15

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

8шт.

16

129-107

NUT,5/8"-11, G5

8шт.

17

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

18

T53015

TRUSS ROD

2шт.

19

T53016

TRUSS ROD BRACKET - R.H.

1шт.

20

T53017

TRUSS ROD BRACKET - L.H.

1шт.

21

131-1131

LOCK NUT,3/4"-10, GA

NUT, hs. center lock, 3/4

2шт.

22

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

23

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

SCREW, hx. hd. cap, 5/8 x 6

4шт.
