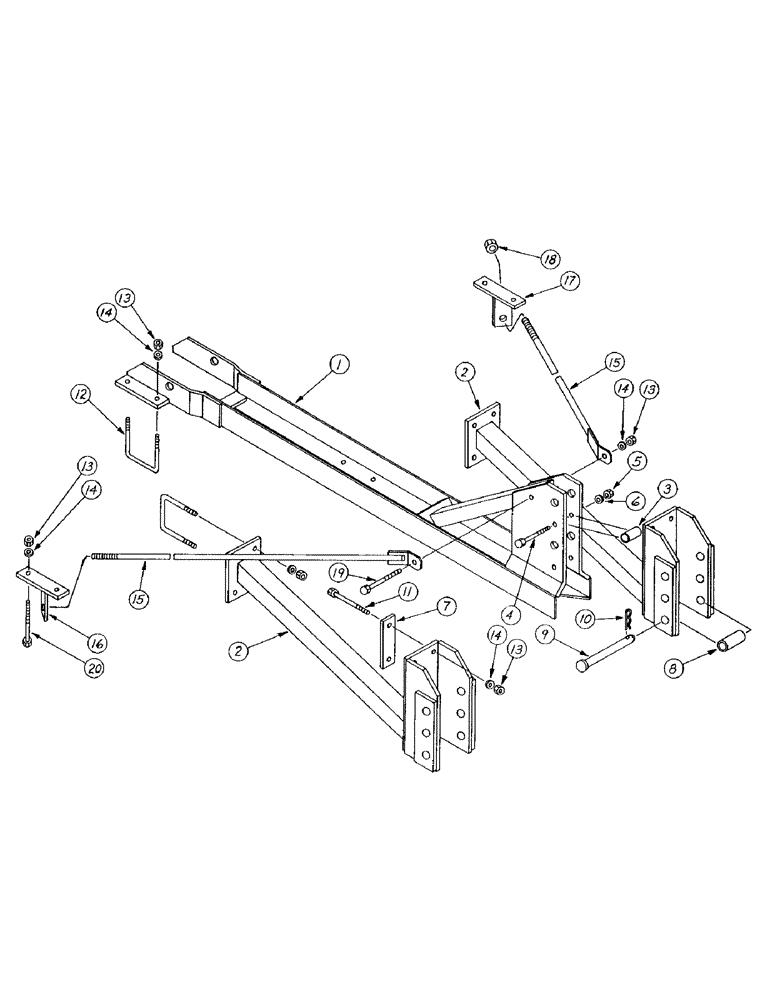

Запчасти Case IH 400-SERIES (06) - CATEGORY II, HITCH AND TRUSS ROD

1

T53028

MAST

1шт.

2

T53029

HITCH BRACKET SIDE

2шт.

3

T30665

BUSHING

1шт.

4

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

SCREW, hx. hd. cap, 5/8 x 4

2шт.

5

129-107

NUT,5/8"-11, G5

2шт.

6

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

7

T53030

BRACKET

4шт.

8

T50111

PIPE

SLEEVE

2шт.

9

T50112

PIN

CLEVIS PIN

2шт.

10

T50113

PIN

CLINCH PIN

2шт.

11

113-2610

SCREW, hx. hd. cap, 5/8 x 6, gr. 8

8шт.

12

T51888

U-BOLT

5/8

10шт.

13

129-107

NUT,5/8"-11, G5

28шт.

14

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

28шт.

15

T53015

TRUSS ROD

2шт.

16

T53016

TRUSS ROD BRACKET - R.H.

1шт.

17

T53017

TRUSS ROD BRACKET - L.H.

1шт.

18

131-1131

LOCK NUT,3/4"-10, GA

NUT, hs. center lock, 3/4

2шт.

19

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

20

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

SCREW, hx. hd. cap, 5/8 x 6

4шт.
