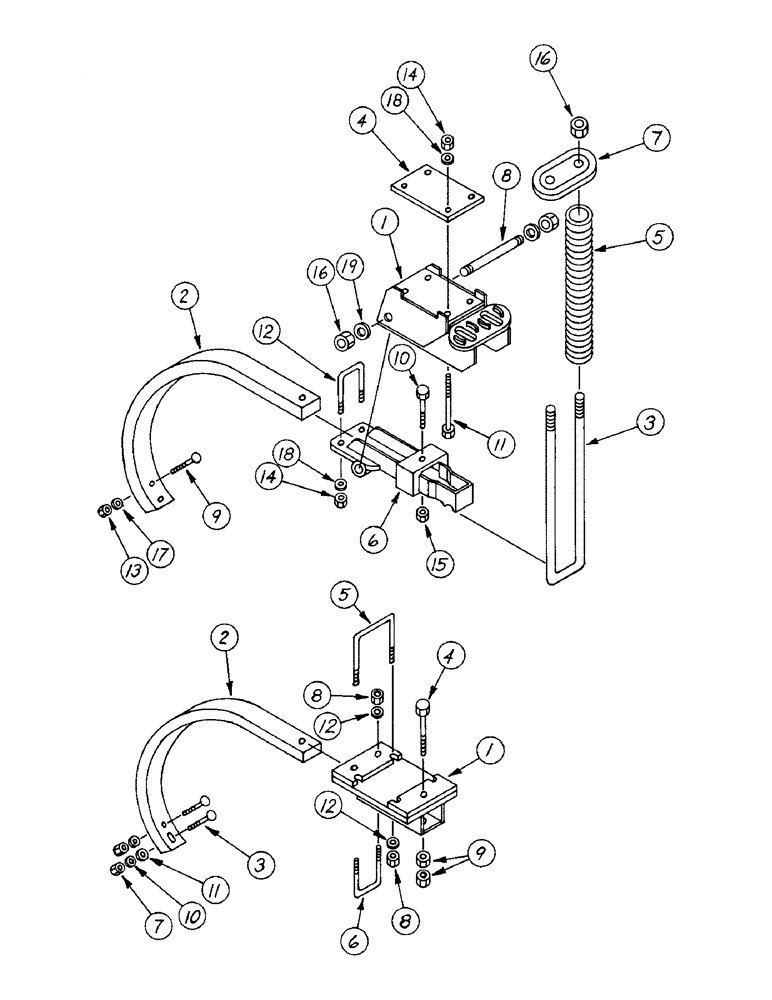

Запчасти Case IH 400-SERIES (24) - SHANK ASSEMBLIES DOUBLE SPRING AND RIGID

1

T53033

SHANK BRACKET

1шт.

2

T53024

SHANK

1шт.

3

T53034

U-BOLT

3/4

1шт.

4

T53035

PLATE

1шт.

5

T53036

PRESSURE SPRING

2шт.

6

T53037

HOLDER

SHANK HOLDER

1шт.

7

T53038

SPRING CAP

1шт.

8

T53039

BOLT

STUD BOLT

1шт.

9

19-740

X

PLOW BOLT, 7/16 x 2-1/2, gr. 5

2шт.

10

113-2601

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

SCREW, hx. hd. cap, 5/8 x 2-3/4, gr. 8

1шт.

11

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

SCREW, hx. hd. cap, 5/8 x 6

4шт.

12

T53040

U-BOLT, 5/8

1шт.

13

129-104

NUT,7/16"-14, G5

2шт.

14

129-107

NUT,5/8"-11, G5

6шт.

15

230-41110

LOCK NUT,5/8"-11, GA

NUT, hx. top lock, 5/8

1шт.

16

131-1131

LOCK NUT,3/4"-10, GA

NUT, hx. top lock, 3/4

4шт.

17

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

18

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

19

193-35

LOCK WASHER,Int Tooth, 3/4"

WASHER, LOCK, Int Tooth, 3/4"

2шт.

1

T53023

SHANK CLAMP

1шт.

2

T53024

SHANK

1шт.

3

18-740

X

PLOW BOLT #3 HD., 7/16 x 2-1/2

2шт.

4

113-644

SCREW

hx. hd. cap, 5/8 x 3-1/2, gr. 8

1шт.

5

T51888

U-BOLT

H.T.

2шт.

6

T53025

U-BOLT

1шт.

7

129-104

NUT,7/16"-14, G5

2шт.

8

129-107

NUT,5/8"-11, G5

6шт.

9

129-569

NUT, hx. hvy., 5/8, gr. 5

2шт.

10

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

11

95-7

WASHER,7/16"

flat, 7/16

1шт.

12

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.
