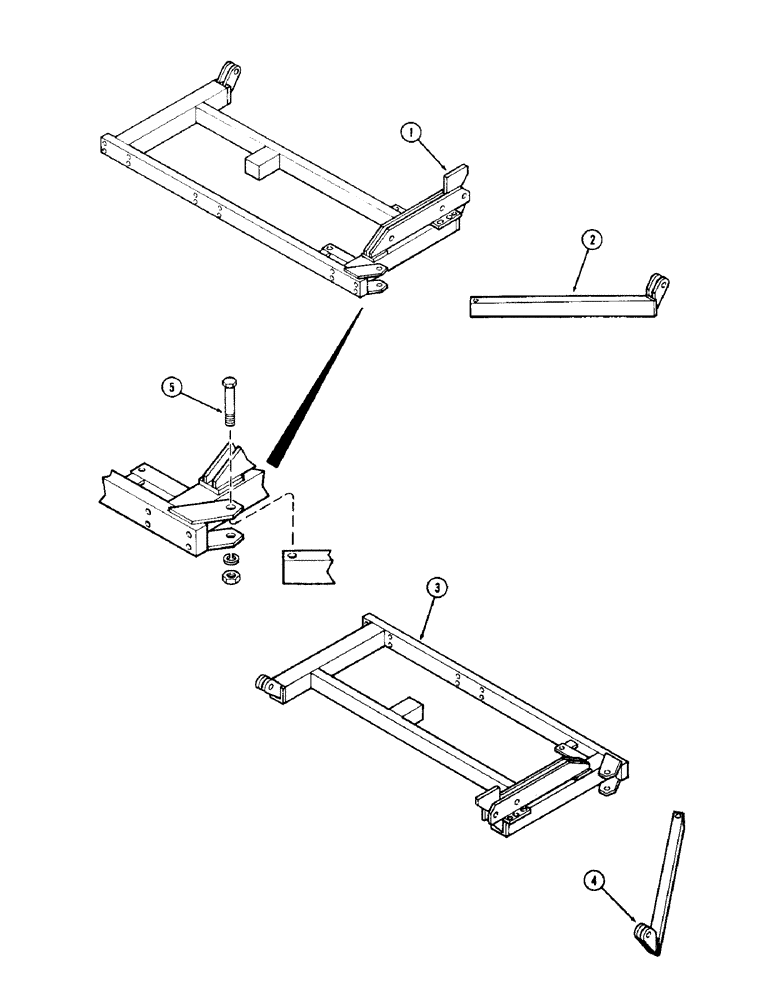

Запчасти Case IH 324 (12) - SHORT WING AND WING BRACE, USED SERIAL NUMBER 25551 AND AFTER

1

T54434

WING - short, R.H.

1шт.

2

T53454

BRACE - wing, R.H.

1шт.

3

T54435

WING - short, L.H.

1шт.

4

T53474

BRACE - wing, L.H.

1шт.

5

113-928

BOLT,Hex, 1" - 8 x 6", Gr 5

- 1 x 6" N.C. hex., Z.P.

2шт.

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

129-110

NUT,1"-8, G5

2шт.

6

T55052

BLOCK - wing

2шт.

7

T55055

PIN

HINGE - pin

2шт.
