Запчасти Case IH 324 (06) - MAIN FRAME AND TORQUE TUBE, USED SERIAL NUMBER 25551 AND AFTER

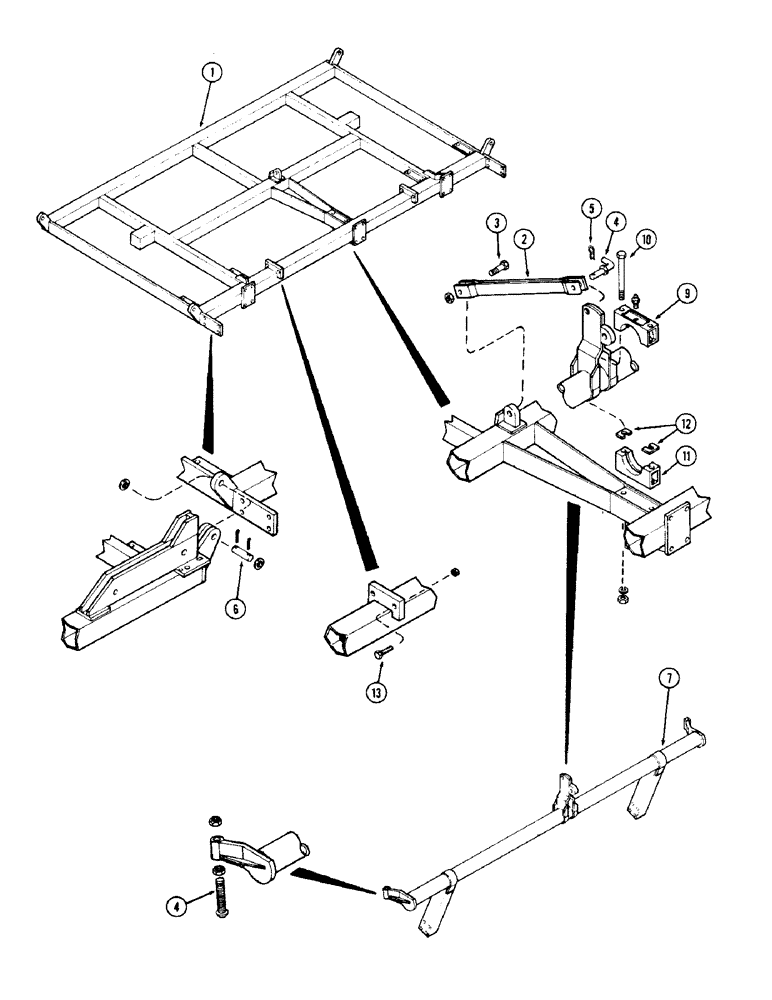

Схема запчастей Case IH 324 - (06) - MAIN FRAME AND TORQUE TUBE, USED SERIAL NUMBER 25551 AND AFTER
3
13
1
4
7
11
4
10
5
12
9
6
2

Артикул

Название

Примечание

Количество

1

T54433

FRAME - main

1шт.

2

T53850

LOCKUP - torque tube

1шт.

3

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock, 3/4" N.C. hex., Z.P.

1шт.

4

T53855

PIN - lock

1шт.

5

136-163

HAIR PIN COTTER,Int, 5/16" x .177

COTTER - hairpin, #8

1шт.

6

T53435

PIN

- hinge, 1 x 3-3/4"

4шт.

195-553

WASHER,1", SAE

- 2 x 1-1/16 x .134"

8шт.

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

8шт.

7

T53488

TUBE - torque 132.7, 26" L

1шт.

8

T53853

BOLT

- adjusting, 1 x 6-1/8"

2шт.

131-1184

LOCK NUT,1"-8, GA

NUT - 1" N.C. hex., Z.P.

4шт.

9

T53464

BEARING

- upper

5шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

5шт.

10

113-642

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- 5/8 x 8" N.C. hex., Z.P.

10шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

129-107

NUT,5/8"-11, G5

10шт.

11

T30905

X

BEARING - lower

5шт.

12

T30897

SHIM - torque tube

20шт.

13

113-2620

BOLT,Hex, 5/8" - 11 x 3", Gr 5, Full Thd

- 5/8 x 3" N.C. hex., full thread

4шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

- jam, 5/8" N.C. hex., Z.P.

4шт.

Выбрано товаров: 21
