Запчасти Case IH 324 (04) - HITCH

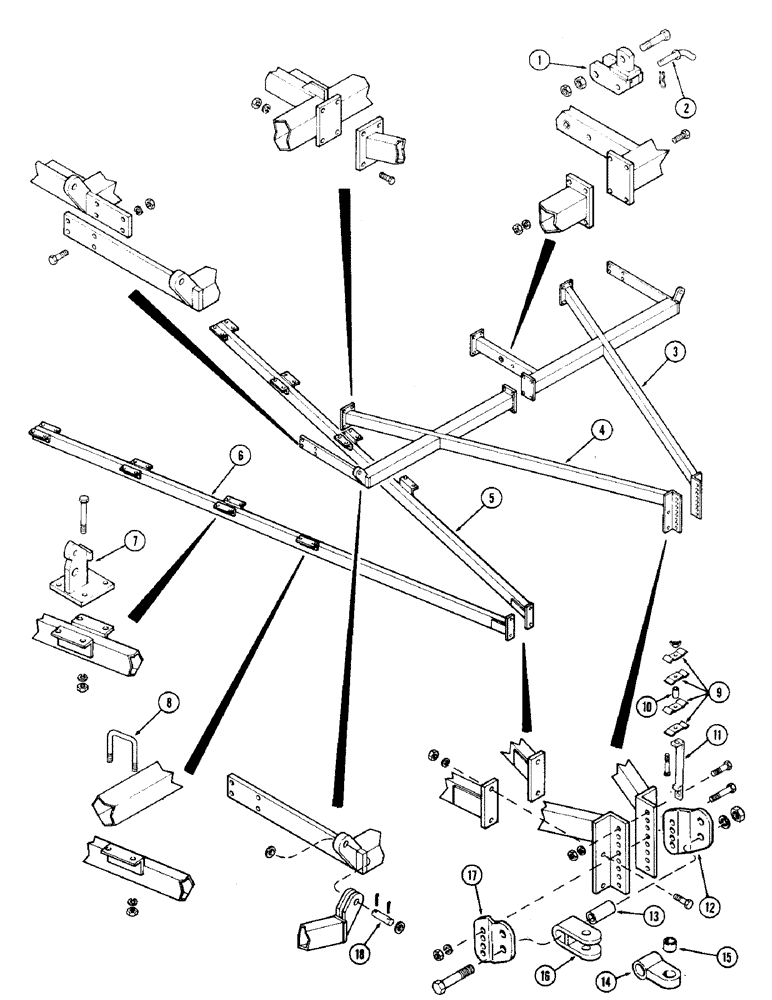

Схема запчастей Case IH 324 - (04) - HITCH
1
5
8
13
2
16
6
14
9
10
15
11
18
17
3
4
7
12

Артикул

Название

Примечание

Количество

1

T53847

LUG - cylinder mount

1шт.

113-903

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

1шт.

129-110

NUT,1"-8, G5

1шт.

129-150

NUT,Jam, 1"-8, G5

- jam, 1" N.C. hex., Z.P.

1шт.

2

T53855

PIN - lock

1шт.

136-163

HAIR PIN COTTER,Int, 5/16" x .177

COTTER - hairpin

1шт.

3

T53446

SUPPORT

HITCH - main L.H.

1шт.

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- 3/4" x 2-1/2" N.C. hex., Z.P.

6шт.

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

7шт.

129-108

NUT,3/4"-10, G5

7шт.

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

12шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

129-107

NUT,5/8"-11, G5

12шт.

4

T53445

HITCH - main, R.H.

1шт.

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- 3/4" x 2-1/2" N.C. hex., Z.P.

6шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

129-108

NUT,3/4"-10, G5

6шт.

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

129-107

NUT,5/8"-11, G5

4шт.

5

T53448

HITCH - lower, L.H.

1шт.

6

T53447

HITCH - lower, R.H.

1шт.

7

T53851

BRACKET - cylinder, R.H.

1шт.

7

T53852

BRACKET - cylinder, L.H.

1шт.

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- 5/8" x 6" N.C. hex., Z.P.

8шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

129-107

NUT,5/8"-11, G5

8шт.

8

T52291

U-BOLT

10шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

20шт.

129-107

NUT,5/8"-11, G5

20шт.

9

T37564

CLAMP - hose support

4шт.

111-414

BOLT - 7/16" x 3" cge

1шт.

129-420

NUT, WING

NUT - wing, 7/16" Z.P.

1шт.

10

T53457

SPACER - hose clamp, 3/8" x 1-1/8"

1шт.

11

T53846

SUPPORT - hose

1шт.

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

129-108

NUT,3/4"-10, G5

1шт.

12

T55136

PLATE

- hitch, L.H.

1шт.

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

4шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

129-108

NUT,3/4"-10, G5

4шт.

113-967

BOLT - 1-1/8" x 6-1/2" N.C. hex., Z.P. Hex, 1 1/8-7 x 6 1/2", G5

1шт.

192-33

LOCK WASHER,1 1/8"

WASHER, LOCK, 1 1/8"

1шт.

129-111

NUT,1 1/8"-7, G5

- 1-1/8" N.C. hex., Z.P.

1шт.

13

T53493

SPACER - 2" x 1-1/4" x 3-5/8"

1шт.

14

T55053

CLEVIS

- hitch, block type

1шт.

15

T55054

BUSHING - clevis, drawbar pin

1шт.

16

T53492

CLEVIS - hitch, yoke type

1шт.

17

T55135

PLATE

- hitch, R.H.

1шт.

18

T53435

PIN

- hinge, 1" x 3-3/4"

2шт.

195-553

WASHER,1", SAE

- 2" x 1-1/16" x .134

4шт.

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

Выбрано товаров: 54
