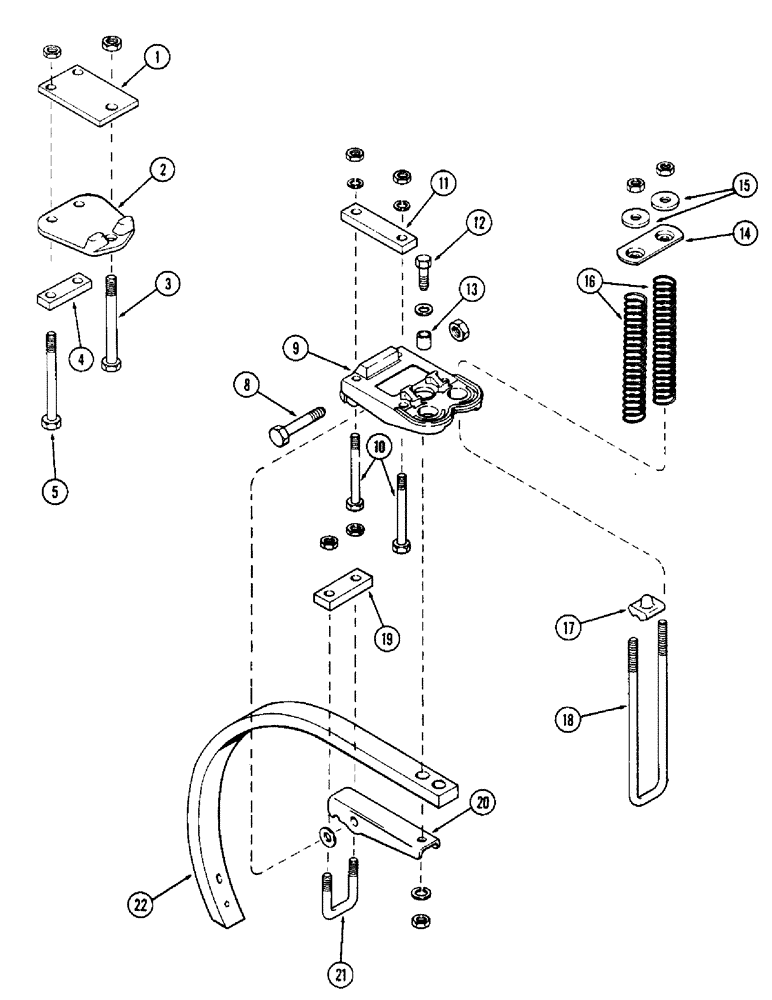

Запчасти Case IH 324 (26) - RIGID CLAMP

1

T34884

top

1шт.

2

T37763

rigid clamp

1шт.

3

113-759

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

3/4" N.C. hex., Z.P.

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

129-108

NUT,3/4"-10, G5

1шт.

4

T17664

tooth bar

1шт.

5

113-642

BOLT,Hex, 5/8" - 11 x 8", Gr 5

5/8" x 7-3/4" N.C. hex., Z.P.

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

129-107

NUT,5/8"-11, G5

2шт.

8

113-777

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

pivot, 3/4 x 4-1/2" N.C. hex, CUSHION CLAMP

1шт.

195-2085

WASHER

1-1/2" x 13/16" x 16 ga, CUSHION CLAMP

1шт.

131-1112

NUT,Jam, 3/4"-10

LOCK - 3/4" N.C. ESNA, CUSHION CLAMP

1шт.

9

T53673

PLATE

base (Replaces T2211 inter.), CUSHION CLAMP

1шт.

10

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8" x 6" N.C. hex., Z.P., CUSHION CLAMP

4шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Cushion clamp 5/8"

4шт.

129-107

NUT,5/8"-11, G5

Cushion Clamp 5/8"-11, G5

4шт.

11

T52051

CUSHION CLAMP

2шт.

12

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- 5/8" x 2-1/4" N.C. hex., Z.P., CUSHION CLAMP

1шт.

195-2072

WASHER,11/16" x 1 1/8" x 109"

1-1/8" x 11/16" x12 ga, CUSHION CLAMP

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Cushion clamp 5/8"

1шт.

129-107

NUT,5/8"-11, G5

Cushion Clamp 5/8"-11, G5

1шт.

13

T22329

BUSHING

CUSHION CLAMP

1шт.

14

T54439

WASHER

11/16 x 2 x 1/4", CUSHION CLAMP

2шт.

15

T54438

CAP

spring, CUSHION CLAMP

1шт.

16

T20296

SPRING

CUSHION CLAMP

2шт.

17

T38977

BLOCK

"U" bolt, CUSHION CLAMP

1шт.

18

T52310

U-BOLT

spring, CUSHION CLAMP

1шт.

230-4117

LOCK NUT,7/16"-14, GA

LOCK - 5/8" N.C. Gripco, CUSHION CLAMP

2шт.

19

T25684

STRAP

"U" bolt, CUSHION CLAMP

1шт.

20

T53674

BRACKET

hinge (Replaces T1753 inter.), CUSHION CLAMP

1шт.

21

T52093

U-BOLT

hinge bracket, CUSHION CLAMP

1шт.

230-4117

LOCK NUT,7/16"-14, GA

LOCK- 5/8" N.C. Gripco, CUSHION CLAMP

2шт.

22

T35133

SHANK

spring, 1" x 2" x 26", CUSHION CLAMP

1шт.
