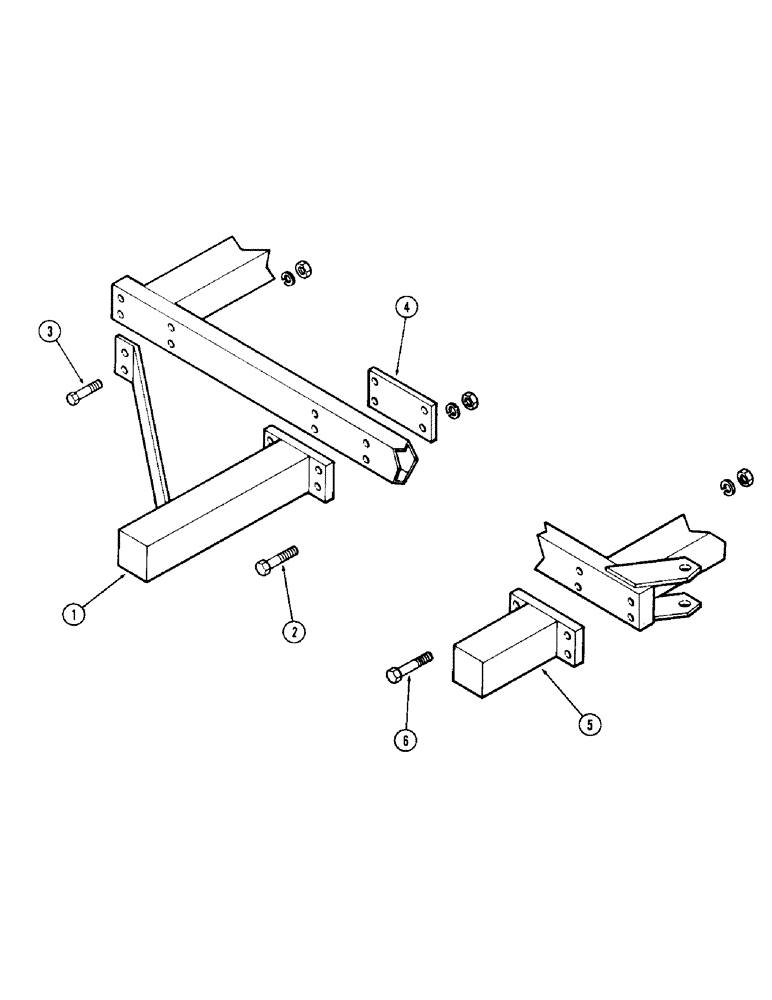

Запчасти Case IH 324 (24) - EXTENSIONS

1

T52258

EXTENSION - 2 ft.

2шт.

2

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

8шт.

3

113-717

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

4шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

12шт.

129-108

NUT,3/4"-10, G5

12шт.

4

T52261

PLATE - backing

2шт.

5

T52257

EXTENSION - 1 ft.

2шт.

6

113-717

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

8шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

129-108

NUT,3/4"-10, G5

8шт.
