Запчасти Case IH 324 (22) - SPINDLE AND WHEEL

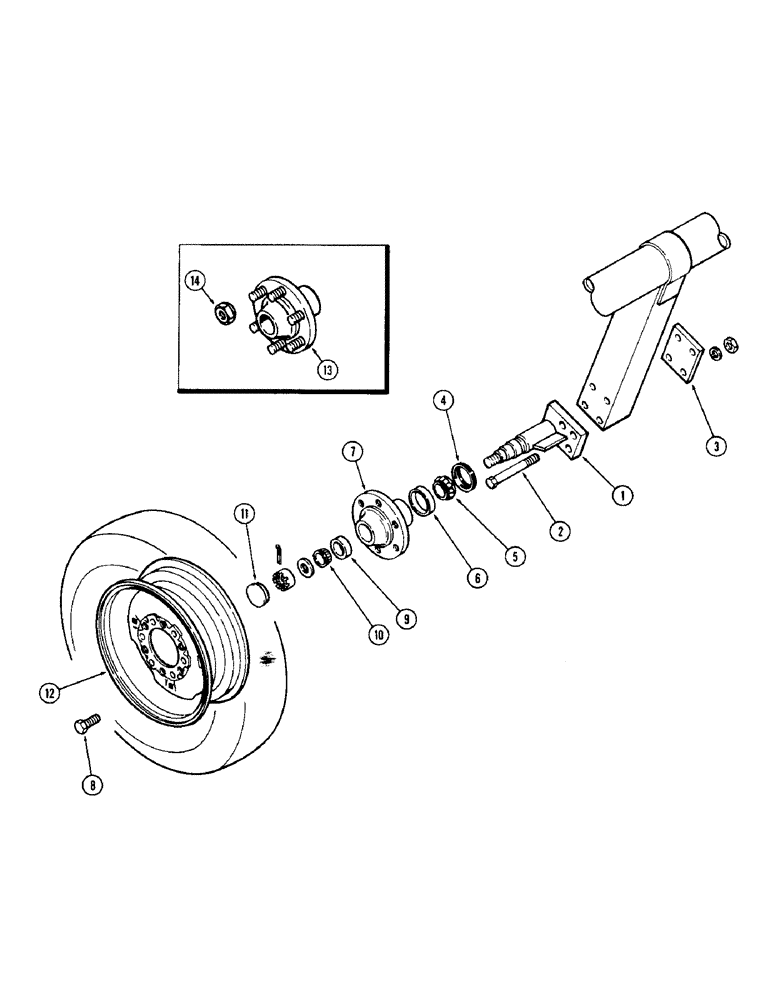

Схема запчастей Case IH 324 - (22) - SPINDLE AND WHEEL
10
1
5
11
7
14
8
6
9
3
2
12
13
4

Артикул

Название

Примечание

Количество

1

T53844

SPINDLE

- L.H.

2шт.

1

T53845

SPINDLE - R.H.

2шт.

195-53

WASHER,1" x 2" x .134"

- 2" x 1-1/16" x 10 ga

4шт.

F23214

WHEEL NUT

- 1" N.F. hex., slotted

4шт.

132-306

COTTER PIN,3/16" x 1 3/4"

PIN, SPLIT (COTTER), 3/16" x 1 3/4"

4шт.

2

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- 5/8" x 6" N.C. hex., Z.P.

16шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

129-107

NUT,5/8"-11, G5

16шт.

3

T53466

PLATE - backing

4шт.

4

T39278

SEAL

- grease

4шт.

5

H747758

TAPERED BEARING,38.1 mm ID x 18.034 mm

CONE - bearing, inner

4шт.

6

H751370

BEARING CUP

CUP - bearing, inner

4шт.

7

T53229

HUB

- wheel (Takes bolts)

4шт.

8

T40045

WHEEL BOLT

BOLT - wheel, 1/2" x 1-1/16"

24шт.

9

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing, outer

4шт.

10

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing, outer

4шт.

11

T23707

CAP

- dust

4шт.

12

T53675

WHEEL

- 7.60 x 15

4шт.

12

T53528

WHEEL

- 9.50L x 15

4шт.

13

T55364

HUB

- wheel (Incl. ref. 6, 7, 9 & 14) (Takes studs & nuts)

4шт.

14

G49041

WHEEL NUT

- wheel

24шт.

Выбрано товаров: 21
