Запчасти Case IH 324 (20) - HYDRAULIC HOSES AND PIPES

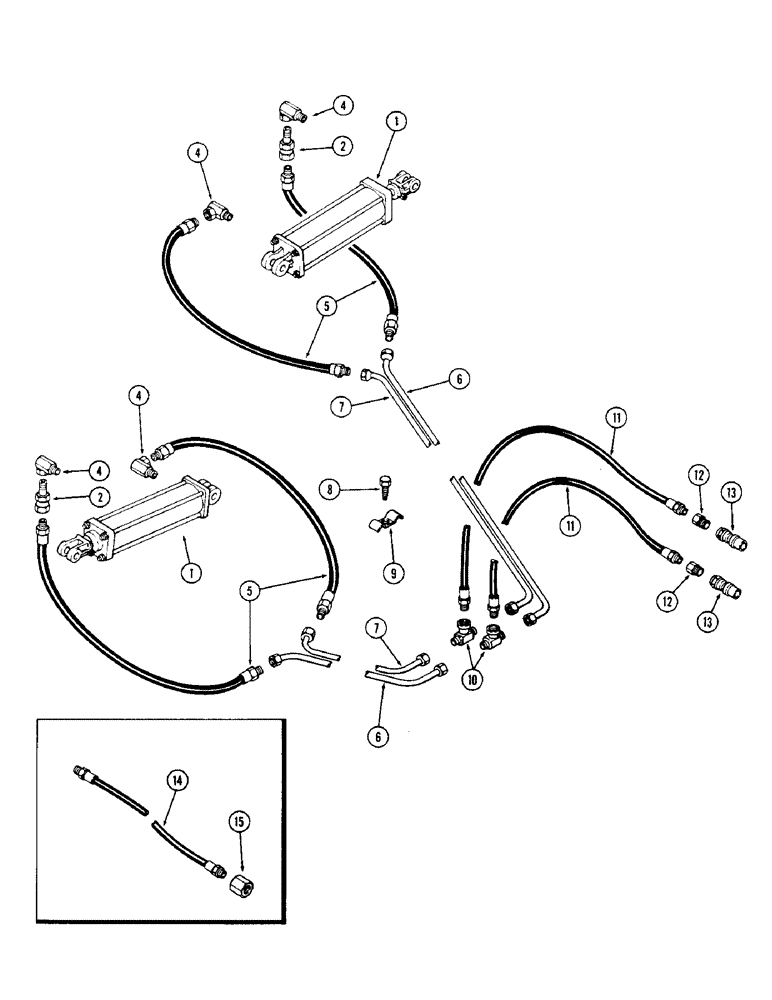

Схема запчастей Case IH 324 - (20) - HYDRAULIC HOSES AND PIPES
12
4
9
1
14
7
4
8
2
5
11
4
15
1
6
2
13
4
7
5
13
6
10
12
11

Артикул

Название

Примечание

Количество

1

T53854

CYLINDER - wing lift w/pins (See page 18)

2шт.

2

T55473

UNION - swivel adapter, orificed

2шт.

4

218-5203

90 ELBOW,90 Degree, 3/4"-16 O-Ring x 1/2" NPSM Fem

UNION - swivel adapter, 90 degrees

4шт.

5

T53467

HOSE - hydraulic, 1/2" x 24"

4шт.

6

T53468

TUBE,0.5" OD

- hydraulic, 91"

2шт.

6

T53888

TUBE,0.5" OD

- hydraulic, 91" (Eff. w/ser. #25552)

2шт.

7

T53471

TUBE,0.5" OD

- hydraulic, 90"

2шт.

7

T53889

TUBE,0.5" OD

- hydraulic, 90" (Eff. w/ser. #25552)

2шт.

8

187-1635

SCREW - self-tapping, 1/4" x 3/4"

6шт.

9

T53262

CLAMP

- tube, double

6шт.

10

218-584

ADAPTER - tee

2шт.

11

T54455

HOSE - hydraulic, 1/2" x 7/8"

2шт.

12

A27744

ADAPTER,7/8" - 18 x 1/2" NPT

- male, 1/2" x 7/8"

2шт.

13

A28541

COUPLING, BREAK AWAY

COUPLING - breakaway, male (See page 24)

2шт.

14

A32998

HYDRAULIC HOSE,15.88mm ID x 787.4mm L, SAE 100R1

HOSE - extension, 32" (For portable cylinder on 1470 or 2470 tractors)

2шт.

15

A34928

ADAPTER,1/2" NPT Fem x 7/8"-18 Fem

COUPLING - hose, 1/2" x 7/8" (For portable cylinder on 1470 or 2470 tractors)

2шт.

Выбрано товаров: 16
